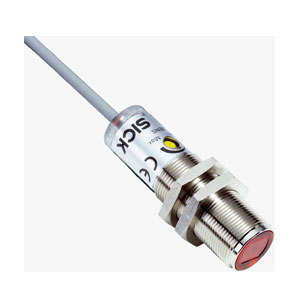

VSE180-2P41132: 6041822 - Sick Through Beam Photoelectric Sensor
Technical Specifications of Sick Through Beam Photoelectric Sensor VSE180-2P41132 6041822:
| Dimensions (W x H x D) | 18 mm x 18 mm x 62.5 mm |
| Sensing Range | 0 m ... 20 m |
| Switching Output | PNP 4) |
| Connection Type | Cable, 4-wire, 2 m 7) |
Sick Through Beam Photoelectric Sensor VSE180-2P41132, 6041822 Technical Specifications:
| Specification | Value |
|---|---|
| Functional principle | Through-beam photoelectric sensor |
| Functional principle detail | - |
| Dimensions (W x H x D) | 18 mm x 18 mm x 62.5 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 62.5 mm |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 0 m ... 28 m |
| Sensing range | 0 m ... 20 m |
| Focus | Approx. 5Β° |
| Type of Light | Visible red light |
| Light source | LED 1) |
| Light spot size (distance) | Γ 1,100 mm (20 m) |
| Angle of dispersion | Approx. 5Β° |
| Wave length | 645 nm |
| Adjustment | Potentiometer, 270Β° (Sensitivity)2) |
| Supply voltage UB | 10 V DC ... 30 V DC 1) |
| Ripple | Β± 10 % 2) |
| Current consumption | - |
| Switching output | PNP 4) |
| Switching mode | Light/dark switching 4) |
| Switching mode selector | Selectable via L/D control cable |
| Output current Imax. | β€ 100 mA |
| Response time | β€ 0.5 ms 5) |
| Switching frequency | 1,000 Hz 6) |
| Connection type | Cable, 4-wire, 2 m 7) |
| Protection class | III |
| Housing material | Metal, Nickel-plated brass and PC |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
Give Us a Call for Sick Through Beam Photoelectric Sensor VSE180-2P41132 part no: 6041822 at the lowest pricing. In-depth Technical Analysis of VSE180-2P41132, 6041822 feature Through-beam photoelectric sensor, -, 18 mm x 18 mm x 62.5 mm dimensions, Cylindrical housing design, 62.5 mm housing length, M18 x 1 thread diameter, 0 m ... 28 m sensing range, Visible red light, LED 1) light source, Γ 1,100 mm (20 m) light spot size, 645 nm wave length, 10 V DC ... 30 V DC 1) supply voltage, Β± 10 % 2) ripple, - current consumption, PNP 4) output, Light/dark switching 4), β€ 100 mA output current, β€ 0.5 ms 5) response time, 1,000 Hz 6) frequency, Cable, 4-wire, 2 m 7) , IP67 Enclosure rating. Elevate Your Project with a Quote for your requirement of Sick Through Beam Photoelectric Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
