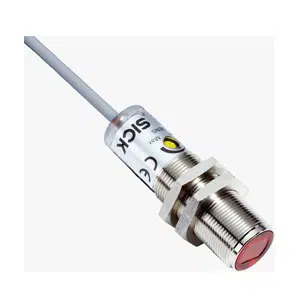

Sick VTE180-2P41142 Photoelectric Sensor
The Sick VTE180-2P41142 is a photoelectric proximity sensor with 350 mm sensing range and PNP output for industrial automation. This Sick photoelectric sensor uses visible red LED light at 645 nm, operates on 10–30 V DC supply, supports 1,000 Hz switching frequency, and belongs to the V12 series. The VTE180-2P41142 is classified as a Sick 62.5 mm Photoelectric Sensor.
| Brand | Sick |
| Product Type | Photoelectic Sensor |
| Model Number | VTE180-2P41142 |
Sick VTE180-2P41142 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Energetic |
| Dimensions (W x H x D) | 18 mm x 18 mm x 62.5 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 62.5 mm |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 1 mm ... 500 mm |
| Sensing range | 1 mm ... 350 mm |
| Focus | Approx. 1.5° |
| Type of Light | Visible red light |
| Light source | LED |
| Light spot size (distance) | Ø 20 mm (400 mm) |
| Angle of dispersion | Approx. 1.5° |
| Wave length | 645 nm |
| Adjustment | Potentiometer, 270° (Sensing range) |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA 3) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via L/D control cable |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 0.5 ms 5) |
| Switching frequency | 1,000 Hz 6) |
| Connection type | Cable, 4-wire, 2 m 7) |
| Protection class | III |
| Housing material | Metal, Nickel-plated brass and PC |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Weight | 95 g |
The VTE180-2P41142 Sick 62.5 mm Photoelectric Sensor is a Sick photoelectric sensor designed for precise proximity detection in industrial automation. This model offers a 1–350 mm sensing range, energetic photoelectric operating principle, and PNP switching output. Operating at 10–30 V DC, the VTE180-2P41142 belongs to the V12 series and is suitable for controlled object detection in compact machine layouts.
The VTE180-2P41142 Sick 62.5 mm Photoelectric Sensor is commonly used in conveyors, packaging machines, automated assembly stations, and material handling systems. Its ≤ 0.5 ms response time and 1,000 Hz switching frequency support stable detection of fast-moving components. The M18 cylindrical housing and axial optical alignment enable consistent installation in industrial equipment.
The VTE180-2P41142 from Sick provides reliable performance through its IP67 enclosure, controlled PNP output, and stable energetic sensing principle. As part of the V12 series, the VTE180-2P41142 is designed for continuous industrial operation. This Sick photoelectric sensor meets requirements for electrical stability, mechanical durability, and dependable proximity detection.
