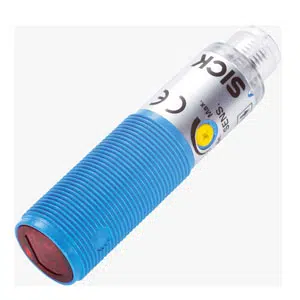

Sick VTE180-2P42447 Photoelectric Sensor
The Sick VTE180-2P42447 photoelectric sensor provides energetic proximity sensing with 350 mm range, PNP output, axial optics for automation. Manufactured by Sick, this Sick 645 nm Photoelectric Sensor operates using visible red LED light at 645 nm, supports 10–30 V DC supply, offers ≤0.5 ms response time, and features IP67 enclosure with M12 connector, categorized under Sick Photoelectric Sensors within the V12 series.
| Brand | Sick |
| Product Type | Photoelectic Sensor |
| Model Number | VTE180-2P42447 |
Sick VTE180-2P42447 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Energetic |
| Dimensions (W x H x D) | 18 mm x 18 mm x 69.8 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 69.8 mm |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 1 mm ... 500 mm |
| Sensing range | 1 mm ... 350 mm |
| Focus | Approx. 1.5° |
| Type of Light | Visible red light |
| Light source | LED |
| Light spot size (distance) | Ø 20 mm (400 mm) |
| Angle of dispersion | Approx. 1.5° |
| Wave length | 645 nm |
| Adjustment | Potentiometer, 270° (Sensing range) |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA 3) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via L/D control cable |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 0.5 ms 5) |
| Switching frequency | 1,000 Hz 6) |
| Connection type | Male connector M12, 4-pin |
| Protection class | III |
| Housing material | Plastic, PBT/PC |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Weight | 18 g |
The VTE180-2P42447 Sick 645 nm Photoelectric Sensor is an energetic proximity sensor designed for industrial automation environments. This Sick model supports a 1–350 mm sensing range, axial optical alignment, and a PNP switching output. The VTE180-2P42447 belongs to the V12 series and operates on 10–30 V DC, making it suitable for controlled short-to-medium distance object detection tasks in factory automation systems.
In industrial applications, the VTE180-2P42447 Sick 645 nm Photoelectric Sensor is used in conveyors, packaging machinery, automated assembly lines, and material handling equipment. Energetic sensing enables reliable detection based on reflected light intensity from the target. The fast ≤0.5 ms response time, defined light spot, and IP67 enclosure help maintain stable switching performance under dust, vibration, and continuous operational conditions.
The VTE180-2P42447 from Sick delivers consistent sensing behavior with clearly defined electrical and mechanical characteristics. With PNP output, IP67 protection, and M18 cylindrical housing, this V12 series photoelectric sensor aligns with standard industrial automation requirements. The Sick VTE180-2P42447 photoelectric sensor supports predictable detection performance and long-term reliability in demanding industrial environments.
