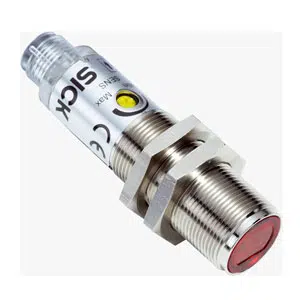

Sick VTF180-2P42412 Photoelectric Sensor
The Sick VTF180-2P42412 photoelectric sensor delivers background blanking detection with 100 mm sensing range, PNP output, axial optics applications. Manufactured by Sick, this Sick 140 mm Axial Photoelectric Sensor operates using visible red LED light at 645 nm, supports 10–30 V DC supply, provides ≤0.5 ms response time, and features IP67 metal housing with M12 connector, listed under Sick Photoelectric Sensors within the V12 series.
| Brand | Sick |
| Product Type | Photoelectic Sensor |
| Model Number | VTF180-2P42412 |
Sick VTF180-2P42412 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background blanking |
| Dimensions (W x H x D) | 18 mm x 18 mm x 69.8 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 69.8 mm |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 1 mm ... 140 mm |
| Sensing range | 1 mm ... 100 mm |
| Focus | - |
| Type of Light | Visible red light |
| Light source | LED |
| Light spot size (distance) | Ø 8 mm (100 mm) |
| Angle of dispersion | - |
| Wave length | 645 nm |
| Adjustment | Potentiometer, 270° (Sensing range) |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA 3) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via L/D control cable |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 0.5 ms 5) |
| Switching frequency | 1,000 Hz 6) |
| Connection type | Male connector M12, 4-pin |
| Protection class | III |
| Housing material | Metal, Nickel-plated brass and PC |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Weight | 47 g |
The VTF180-2P42412 Sick 140 mm Axial Photoelectric Sensor is a proximity-type sensing device used in industrial automation systems. This Sick model operates with a 1–100 mm sensing range, background blanking principle, and a PNP switching output. The VTF180-2P42412 belongs to the V12 series and runs on 10–30 V DC, supporting controlled object detection where defined sensing distances are required.
In automation applications, the VTF180-2P42412 Sick 140 mm Axial Photoelectric Sensor is used on conveyors, packaging machines, assembly lines, and inspection stations. Background blanking allows reliable detection while ignoring reflective backgrounds. The fast ≤0.5 ms response time, axial optical axis, and IP67 enclosure help ensure stable switching performance in dusty, vibration-prone, and continuous-operation industrial environments.
The VTF180-2P42412 from Sick provides consistent sensing performance with defined electrical and mechanical characteristics. With PNP output, IP67 enclosure, and M18 cylindrical housing, this V12 series photoelectric sensor meets standard industrial automation requirements. The Sick VTF180-2P42412 photoelectric sensor supports predictable detection behavior and long-term operational stability in factory automation systems.
