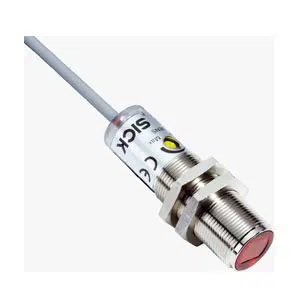

Sick VTE180-2N41142 Photoelectric Sensor
The Sick VTE180-2N41142 is an energetic photoelectric sensor with 350 mm sensing range, visible red LED, and NPN output. This Sick photoelectric sensor operates on 10–30 V DC, supports 1,000 Hz switching frequency, features IP67 enclosure, and belongs to the V12 series. The VTE180-2N41142 is categorized as a Sick NPN Energetic Photoelectric Sensor for industrial automation use.
| Brand | Sick |
| Product Type | Photoelectic Sensor |
| Model Number | VTE180-2N41142 |
Sick VTE180-2N41142 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Energetic |
| Dimensions (W x H x D) | 18 mm x 18 mm x 62.5 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 62.5 mm |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 1 mm ... 500 mm |
| Sensing range | 1 mm ... 350 mm |
| Focus | Approx. 1.5° |
| Type of Light | Visible red light |
| Light source | LED |
| Light spot size (distance) | Ø 20 mm (400 mm) |
| Angle of dispersion | Approx. 1.5° |
| Wave length | 645 nm |
| Adjustment | Potentiometer, 270° (Sensing range) |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA 3) |
| Switching output | NPN |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via L/D control cable |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 0.5 ms 5) |
| Switching frequency | 1,000 Hz 6) |
| Connection type | Cable, 4-wire, 2 m 7) |
| Protection class | III |
| Housing material | Metal, Nickel-plated brass and PC |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Weight | 95 g |
The VTE180-2N41142 Sick NPN Energetic Photoelectric Sensor is a Sick photoelectric sensor designed for precise short-range object detection. This model uses an energetic sensing principle with a 1–350 mm sensing range, NPN switching output, and visible red LED light at 645 nm. Operating on 10–30 V DC, the VTE180-2N41142 belongs to the V12 series and is intended for stable industrial automation applications.
The VTE180-2N41142 Sick NPN Energetic Photoelectric Sensor is commonly applied in conveyors, packaging machines, automated assembly lines, and material handling systems. Its ≤ 0.5 ms response time and 1,000 Hz switching frequency enable accurate detection of fast-moving components. The cylindrical M18 housing with axial optical alignment supports reliable installation in compact automation environments.
The VTE180-2N41142 from Sick delivers consistent detection performance through its IP67-rated enclosure, energetic sensing principle, and stable NPN output. As part of the V12 series, the VTE180-2N41142 is suitable for continuous industrial automation operation. This Sick photoelectric sensor meets requirements for mechanical durability, electrical reliability, and controlled sensing accuracy.
