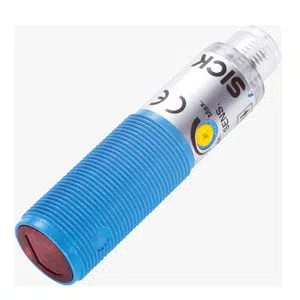

Sick VL180-2P32436 Photoelectric Sensor
The Sick VL180-2P32436 is a retro-reflective photoelectric sensor with dual lens optics, 6 m range, and PNP output design. This Sick photoelectric sensor operates using visible red LED light at 645 nm, supports 10–30 V DC supply voltage, and delivers 1,000 Hz switching frequency. The VL180-2P32436 belongs to the V12 series and is classified as a Sick M18 Dual Lens Photoelectric Sensor.
| Brand | Sick |
| Product Type | Photoelectic Sensor |
| Model Number | VL180-2P32436 |
Sick VL180-2P32436 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Dual lens |
| Dimensions (W x H x D) | 18 mm x 18 mm x 70.2 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 70.2 mm |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 0.05 m ... 7 m |
| Sensing range | 0.05 m ... 6 m |
| Focus | Approx. 4.5° |
| Type of Light | Visible red light |
| Light source | LED |
| Light spot size (distance) | Ø 400 mm (6 m) |
| Angle of dispersion | Approx. 4.5° |
| Wave length | 645 nm |
| Adjustment | Potentiometer, 270° (Sensitivity) |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA 3) |
| Switching output | PNP |
| Switching mode | Dark switching |
| Switching mode selector | - |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 0.5 ms |
| Switching frequency | 1,000 Hz 5) |
| Connection type | Connector M12, 3-pin |
| Protection class | III |
| Housing material | Plastic, PBT/PC |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Weight | 18 g |
The VL180-2P32436 Sick M18 Dual Lens Photoelectric Sensor is a Sick photoelectric sensor designed for retro-reflective detection in industrial automation. This model provides a 0.05–6 m sensing range, dual lens optical system, and PNP switching output. Operating on 10–30 V DC, the VL180-2P32436 is part of the V12 series and supports stable signal detection in compact machine environments.
The VL180-2P32436 Sick M18 Dual Lens Photoelectric Sensor is commonly used in conveyors, packaging lines, automated assembly stations, and material handling systems. Its ≤ 0.5 ms response time and 1,000 Hz switching frequency allow consistent detection of moving objects. The M18 cylindrical housing and axial optical alignment support accurate installation in industrial automation equipment.
The VL180-2P32436 from Sick ensures dependable operation through its IP67 enclosure, controlled dark switching mode, and stable retro-reflective sensing principle. As a V12 series device, the VL180-2P32436 meets requirements for electrical stability, mechanical durability, and reliable photoelectric detection. This Sick photoelectric sensor is suitable for continuous industrial use where consistent sensing performance is required.
