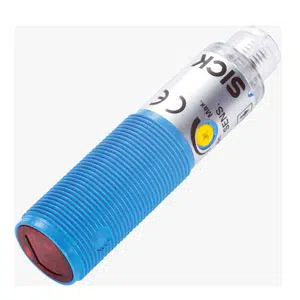

Sick VSE180-2P42437 Photoelectric Sensor
The Sick VSE180-2P42437 is a through-beam photoelectric sensor with 20 m sensing range and PNP output for industrial automation. This Sick photoelectric sensor operates on 10–30 V DC, uses visible red LED light at 645 nm, supports 1,000 Hz switching frequency, and belongs to the V12 series. The VSE180-2P42437 is identified as a Sick 69.8 mm Through-beam Sensor.
| Brand | Sick |
| Product Type | Photoelectic Sensor |
| Model Number | VSE180-2P42437 |
Sick VSE180-2P42437 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Through-beam photoelectric sensor |
| Functional principle detail | - |
| Dimensions (W x H x D) | 18 mm x 18 mm x 69.8 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 69.8 mm |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 0 m ... 28 m |
| Sensing range | 0 m ... 20 m |
| Focus | Approx. 5° |
| Type of Light | Visible red light |
| Light source | LED |
| Light spot size (distance) | Ø 1,100 mm (20 m) |
| Angle of dispersion | Approx. 5° |
| Wave length | 645 nm |
| Adjustment | Potentiometer, 270° (Sensitivity)2) |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | - |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via L/D control cable |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 0.5 ms 5) |
| Switching frequency | 1,000 Hz 6) |
| Connection type | Male connector M12, 4-pin |
| Protection class | III |
| Housing material | Plastic, PBT/PC |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Weight | 36 g |
The VSE180-2P42437 Sick 69.8 mm Through-beam Sensor is a Sick photoelectric sensor designed for long-distance detection in industrial automation. This model provides a 0–20 m sensing range, through-beam functional principle, and PNP switching output. Operating at 10–30 V DC, the VSE180-2P42437 belongs to the V12 series and supports stable signal transmission across extended machine layouts.
The VSE180-2P42437 Sick 69.8 mm Through-beam Sensor is used in conveyors, packaging systems, automated assembly lines, and material handling equipment. Its ≤ 0.5 ms response time and 1,000 Hz switching frequency allow reliable detection of fast-moving objects. The axial optical design and M18 cylindrical housing support consistent installation and alignment.
The VSE180-2P42437 from Sick offers dependable operation through its IP67 enclosure, controlled PNP output, and stable through-beam sensing principle. As part of the V12 series, the VSE180-2P42437 is suitable for continuous industrial automation environments. This Sick photoelectric sensor meets requirements for electrical stability, mechanical durability, and long-range detection reliability.
