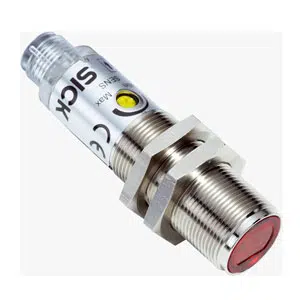

Sick VL180-2P42462 Photoelectric Sensor
The Sick VL180-2P42462 is a dual-lens retro-reflective photoelectric sensor with 6 m sensing range and PNP output industrial automation. This Sick photoelectric sensor uses visible red LED light at 645 nm, operates on 10–30 V DC supply, supports 1,000 Hz switching frequency, and belongs to the V12 series. The VL180-2P42462 is identified as a Sick M18 Dual Lens Retro-reflective Sensor.
| Brand | Sick |
| Product Type | Photoelectic Sensor |
| Model Number | VL180-2P42462 |
Sick VL180-2P42462 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Dual lens |
| Dimensions (W x H x D) | 18 mm x 18 mm x 70.2 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 70.2 mm |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 0.05 m ... 7 m |
| Sensing range | 0.05 m ... 6 m |
| Focus | Approx. 4.5° |
| Type of Light | Visible red light |
| Light source | LED |
| Light spot size (distance) | Ø 400 mm (6 m) |
| Angle of dispersion | Approx. 4.5° |
| Wave length | 645 nm |
| Adjustment | Potentiometer, 270° (Sensitivity) |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA 3) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via L/D control cable |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 0.5 ms 5) |
| Switching frequency | 1,000 Hz 6) |
| Connection type | Male connector M12, 4-pin |
| Protection class | III |
| Housing material | Metal, Nickel-plated brass and PC |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Weight | 47 g |
The VL180-2P42462 Sick M18 Dual Lens Retro-reflective Sensor is a Sick photoelectric sensor designed for stable long-range detection. This model features a 0.05–6 m sensing range, PNP switching output, and dual-lens retro-reflective optics. Operating on 10–30 V DC, the VL180-2P42462 belongs to the V12 series and is used in industrial automation environments requiring consistent object detection.
The VL180-2P42462 Sick M18 Dual Lens Retro-reflective Sensor is commonly used in conveyors, packaging lines, automated assembly systems, and material handling equipment. Its ≤ 0.5 ms response time and 1,000 Hz switching frequency support accurate detection of moving objects. The cylindrical M18 housing with axial optics enables secure installation in compact machine layouts.
The VL180-2P42462 from Sick provides reliable sensing through an IP67-rated enclosure, controlled PNP output, and stable retro-reflective operation. As part of the V12 series, the VL180-2P42462 is suitable for continuous industrial automation use. This Sick photoelectric sensor meets requirements for durability, electrical stability, and precise detection performance.
