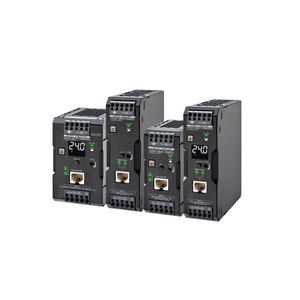

Omron S8VK-X03005-EIP Power Supply

Omron S8VK-X03005-EIP SMPS is a 30 W switch mode power supply designed to provide 5 VDC with 5 A rated output current. It accepts 100 to 240 VAC input at 50/60 Hz and uses DIN rail mounting for installation inside electrical control panels. Push-In Plus terminals and terminal blocks provide fixed input and output wiring connections. Typical efficiency is specified at 78% with 115 VAC input and 77% with 230 VAC input. A green LED provides output status indication. The 5 VDC output and 5 A rating define this low-voltage configuration within the S8VK-X range. Within the S8VK-X Series, the S8VK-X03005-EIP provides a DIN rail 30 W, 5 VDC configuration. Compare other 5V industrial power supplies from Omron automation products.

Omron S8VK-X03005-EIP Power Supply
BrandOmron
ProductPower Supply
Model NumberS8VK-X03005-EIP

Omron S8VK-X03005-EIP Power Supply - Technical Specifications

SpecificationValue
Power rating30 W
Output voltage5 VDC
Rated output current5 A
Terminal typePush-in plus Terminal
Mounting methodDIN rail
ConnectionTerminal blocks
Efficiency78% typ. (at 115 VAC input) 77% typ. (at 230 VAC input)
Rated input voltage100 to 240 VAC
Rated input current0.53 A typ. (at 115 VAC input) 0.32 A typ. (at 230 VAC input)
Input Leakage current0.5 mA max. (at 115 VAC input) 1 mA max. (at 230 VAC input)
Input Frequency50/60 Hz
Output indicatorYes (LED: Green)
Output voltage variable range4.5 to 5.8 V (With V.ADJ)
Start-up time1000 ms max. (at 115 VAC input) 1000 ms max. (at 230 VAC input)
Hold time45 ms typ. (at 115 VAC input) 240 ms typ. (at 230 VAC input)
Vibration resistance10 to 55 Hz, maximum 5 G, 0.42 mm single amplitude for 2 h each in X, Y, and Z directions
Shock resistance150 m/s2, in each 6 directions 3 times
Ambient temperature (Operating)?40 to 70°C
Ambient temperature (Storage)?40 to 85°C
Ambient humidity (OperatingStorage)95% max. (Storage humidity: 95% max.)
Cooling fanNo
Degree of protectionIP20 by EN/IEC 60529
Weight250 g max.

The Omron S8VK-X03005-EIP Power Supply provides 30 W rated power with a 5 VDC output and 5 A rated current. It accepts 100 to 240 VAC input at 50/60 Hz and uses DIN rail mounting with Push-In Plus terminals and terminal blocks for panel installation and wiring. Typical efficiency is specified at 78% with 115 VAC input and 77% with 230 VAC input. These values define a low-voltage 5 VDC configuration where connected equipment voltage, combined current demand, input compatibility, rail space, and terminal access should be checked together. Connected loads should require 5 VDC and remain within the rated 5 A output.

The incoming AC range defines source compatibility independently from the required DC output voltage. Comparing this model with 24 VDC supplies should therefore begin with connected equipment voltage rather than wattage or current alone. Different voltage classes serve different load requirements even when all models use DIN rail mounting. For a 60 W DIN rail model providing 24 VDC at 2.5 A, compare the Omron S8VK-S06024.
