Omron S8VK-X09024-EIP Power Supply
The Omron S8VK-X09024-EIP Power Supply provides a 90 W DC power source with a 24 VDC output rated at 3.75 A for machine-control and industrial automation equipment. The supply operates from 100 to 240 VAC at 50/60 Hz and is designed for DIN rail installation inside electrical control cabinets. Push-In Plus terminals simplify the connection of input and output wiring while maintaining an organized panel arrangement. Its 3.75 A output capacity provides an intermediate 24 VDC power option between lower- and higher-wattage S8VK configurations. The S8VK-X09024-EIP identifies this 90 W configuration within the S8VK Series. It belongs to the wider 90W 24V power supply range associated with Omron control products for industrial automation.
| Brand | Omron |
| Product | Power Supply |
| Model Number | S8VK-X09024-EIP |
Omron S8VK-X09024-EIP Power Supply - Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 90 W |
| Output voltage | 24 VDC |
| Rated output current | 3.75 A |
| Terminal type | Push-in plus Terminal |
| Mounting method | DIN rail |
| Connection | Terminal blocks |
| Efficiency | 87% typ. (at 115 VAC input) 88% typ. (at 230 VAC input) |
| Rated input voltage | 100 to 240 VAC |
| Rated input current | 1.7 A typ. (at 115 VAC input) 1.0 A typ. (at 230 VAC input) |
| Input Leakage current | 0.5 mA max. (at 115 VAC input) 1 mA max. (at 230 VAC input) |
| Input Frequency | 50/60 Hz |
| Output indicator | Yes (LED: Green) |
| Output voltage variable range | 23.0 to 24.1 V (With V.ADJ) |
| Start-up time | 1000 ms max. (at 115 VAC input) 1000 ms max. (at 230 VAC input) |
| Hold time | 25 ms typ. (at 115 VAC input) 130 ms typ. (at 230 VAC input) |
| Vibration resistance | 10 to 55 Hz, maximum 5 G, 0.42 mm single amplitude for 2 h each in X, Y, and Z directions |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | ?40 to 70Β°C |
| Ambient temperature (Storage) | ?40 to 85Β°C |
| Ambient humidity (OperatingStorage) | 95% max. (Storage humidity: 95% max.) |
| Cooling fan | No |
| Degree of protection | IP20 by EN/IEC 60529 |
| Weight | 350 g max. |

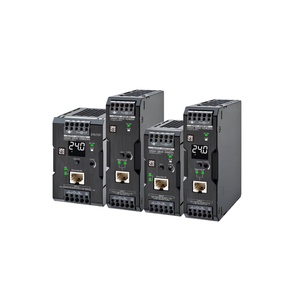

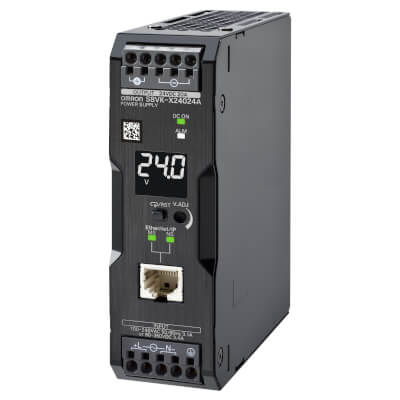

The Omron S8VK-X09024-EIP is frequently assessed alongside related units in the Omron Switch Mode Power Supply range, as these SMPS models share comparable wiring behaviour, thermal characteristics, load endurance, and panel integration features. Engineers often evaluate related models such as Omron S8VK-X03005-EIP (30 W, 5 VDC, 5 A, DIN rail), Omron S8VK-X24024-EIP (240 W, 24 VDC, 10 A, DIN rail), and Omron S8VK-S48024 (480 W, 24 VDC, 20 A, DIN rail) when configuring power rails for PLC racks, servo drives, motion assemblies, and distributed I/O terminals. Comparing specifications like power rating, output voltage behaviour, continuous output current, and mounting orientation helps maintain predictable voltage delivery across machinery with dynamic load patterns. The S8VK-X09024-EIP fits smoothly into conveyors, dosing modules, electrical frames, and compact control panels where a dependable Omron SMPS Power Supply is required. These related SMPS variants also support unified wiring layouts, easier spare handling, and consistent power distribution across multi-panel automation systems.
