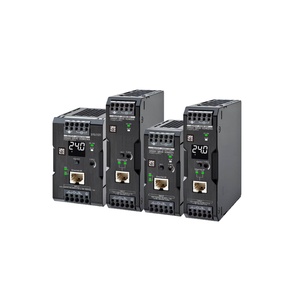

Omron S8VK-X09024A-EIP Power Supply
Omron S8VK-X09024A-EIP SMPS is a 90 W switch mode power supply designed to provide 24 VDC with 3.75 A rated output current. It accepts 100 to 240 VAC input at 50/60 Hz and uses DIN rail mounting for installation inside industrial electrical cabinets. Push-In Plus terminals and terminal blocks provide the wiring interface for input and output circuits. Typical efficiency is specified at 86% with 115 VAC input and 87% with 230 VAC input. A green LED provides output status indication. The 24 VDC output and 3.75 A current rating identify this configuration within the 90 W S8VK-X group. Within the S8VK-X Series, the S8VK-X09024A-EIP provides a DIN rail 90 W, 24 VDC configuration. Compare other 24V industrial power supplies from Omron automation.

| Brand | Omron |
| Product | Power Supply |
| Model Number | S8VK-X09024A-EIP |
Omron S8VK-X09024A-EIP Power Supply - Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 90 W |
| Output voltage | 24 VDC |
| Rated output current | 3.75 A |
| Terminal type | Push-in plus Terminal |
| Mounting method | DIN rail |
| Connection | Terminal blocks |
| Efficiency | 86% typ. (at 115 VAC input) 87% typ. (at 230 VAC input) |
| Rated input voltage | 100 to 240 VAC |
| Rated input current | 1.7 A typ. (at 115 VAC input) 1.0 A typ. (at 230 VAC input) |
| Input Leakage current | 0.5 mA max. (at 115 VAC input) 1 mA max. (at 230 VAC input) |
| Input Frequency | 50/60 Hz |
| Output indicator | Yes (LED: Green) |
| Output voltage variable range | 23.0 to 24.1 V (With V.ADJ) |
| Start-up time | 1000 ms max. (at 115 VAC input) 1000 ms max. (at 230 VAC input) |
| Hold time | 25 ms typ. (at 115 VAC input) 130 ms typ. (at 230 VAC input) |
| Vibration resistance | 10 to 55 Hz, maximum 5 G, 0.42 mm single amplitude for 2 h each in X, Y, and Z directions |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | ?40 to 70°C |
| Ambient temperature (Storage) | ?40 to 85°C |
| Ambient humidity (OperatingStorage) | 95% max. (Storage humidity: 95% max.) |
| Cooling fan | No |
| Degree of protection | IP20 by EN/IEC 60529 |
| Weight | 350 g max. |
The Omron S8VK-X09024A-EIP Power Supply provides 90 W rated power with a 24 VDC output and 3.75 A rated current. It accepts 100 to 240 VAC input at 50/60 Hz and uses DIN rail mounting with Push-In Plus terminals and terminal blocks for structured cabinet installation. Typical efficiency is specified at 86% with 115 VAC input and 87% with 230 VAC input. These values define a 24 VDC configuration where connected load voltage, continuous current requirement, source compatibility, rail space, and wiring access should be reviewed together. Connected equipment should require 24 VDC and keep combined load current within the rated 3.75 A output.
Higher-capacity models can maintain the same 24 VDC output while providing additional current for larger connected loads. A 120 W version provides 5 A and therefore offers more available current without changing the required downstream voltage. Selection between the two should follow actual continuous load demand rather than power rating alone. For a higher-capacity 24 VDC DIN rail configuration, compare the Omron S8VK-X12024A-EIP.
