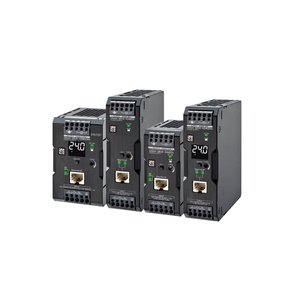

Omron S8VK-X12024-EIP Power Supply
Omron S8VK-X12024-EIP SMPS is a 120 W switch mode power supply configured to provide 24 VDC with 5 A rated output current. It accepts 100 to 240 VAC input at 50/60 Hz and uses DIN rail mounting for structured electrical-panel installation. Push-In Plus terminals and terminal blocks provide fixed connections for input power and the 24 VDC output circuit. Typical efficiency is specified at 90% with 115 VAC input and 92% with 230 VAC input. A green LED provides output status indication. The 5 A output rating gives this model greater current capacity than the 90 W S8VK-X configurations. Within the S8VK-X Series, the S8VK-X12024-EIP provides a DIN rail 120 W, 24 VDC configuration. Compare other 120W power supplies from Omron machine control products.

| Brand | Omron |
| Product | Power Supply |
| Model Number | S8VK-X12024-EIP |
Omron S8VK-X12024-EIP Power Supply - Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 120 W |
| Output voltage | 24 VDC |
| Rated output current | 5 A |
| Terminal type | Push-in plus Terminal |
| Mounting method | DIN rail |
| Connection | Terminal blocks |
| Efficiency | 90% typ. (at 115 VAC input) 92% typ. (at 230 VAC input) |
| Rated input voltage | 100 to 240 VAC |
| Rated input current | 1.2 A typ. (at 115 VAC input) 0.63 A typ. (at 230 VAC input) |
| Input Leakage current | 0.5 mA max. (at 115 VAC input) 1 mA max. (at 230 VAC input) |
| Input Frequency | 50/60 Hz |
| Output indicator | Yes (LED: Green) |
| Output voltage variable range | 21.6 to 28 V (With V.ADJ) |
| Start-up time | 1000 ms max. (at 115 VAC input) 1000 ms max. (at 230 VAC input) |
| Hold time | 35 ms typ. (at 115 VAC input) 35 ms typ. (at 230 VAC input) |
| Vibration resistance | 10 to 55 Hz, maximum 5 G, 0.42 mm single amplitude for 2 h each in X, Y, and Z directions |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | ?40 to 70°C |
| Ambient temperature (Storage) | ?40 to 85°C |
| Ambient humidity (OperatingStorage) | 95% max. (Storage humidity: 95% max.) |
| Cooling fan | No |
| Degree of protection | IP20 by EN/IEC 60529 |
| Weight | 400 g max. |
The Omron S8VK-X12024-EIP Power Supply provides 120 W rated power with a 24 VDC output and 5 A rated current. It accepts 100 to 240 VAC input at 50/60 Hz and uses DIN rail mounting with Push-In Plus terminals and terminal blocks for electrical-panel installation. Typical efficiency is specified at 90% with 115 VAC input and 92% with 230 VAC input. These characteristics define a 24 VDC configuration where load voltage, total current demand, input compatibility, DIN rail space, and terminal access should be considered together. Connected equipment should require 24 VDC and keep continuous current demand within the rated 5 A output.
The S8VK-X range includes higher-power 24 VDC models that increase current capacity while retaining the same nominal output voltage. A 240 W configuration provides 10 A, doubling the rated current available from this 120 W model. This allows selection to be based on the actual current required by connected loads. For a higher-capacity DIN rail model providing 24 VDC at 10 A, compare the Omron S8VK-X24024-EIP.
