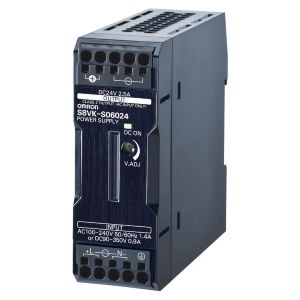

Omron S8VK-S06024 Power Supply
Omron S8VK-S06024 SMPS is a 60 W switch mode power supply configured to provide 24 VDC with 2.5 A rated output current. It supports single-phase 85 to 264 VAC or 90 to 350 VDC input, together with the specified 265 to 300 VAC range, at 50/60 Hz. DIN rail mounting provides the installation format, while push-in terminals and terminal blocks provide input and output wiring connections. Typical efficiency is specified at 87% with 115 VAC input and 89% with 230 VAC input. A green LED indicates output status, and the enclosure carries an IP20 rating. Within the S8VK-S Series, the S8VK-S06024 provides a 60 W, 24 VDC configuration. Compare other 60W industrial power supplies from Omron machine control products.

| Brand | Omron |
| Product | Power Supply |
| Model Number | S8VK-S06024 |
Omron S8VK-S06024 Power Supply - Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 60 W |
| Output voltage | 24 VDC |
| Rated output current | 2.5 A |
| Terminal type | Push-in Terminal |
| Mounting method | DIN rail |
| Connection | Terminal blocks |
| Efficiency | 87% typ. (at 115 VAC input) 89% typ. (at 230 VAC input) |
| Rated input voltage | Single-phase, 85 to 264 VAC, 90 to 350 VDC , 265 to 300 VAC |
| Rated input current | 1.1 A typ. (at 115 VAC input) 0.66 A typ. (at 230 VAC input) |
| Input Leakage current | 0.5 mA typ. (at 115 VAC input) 1 mA typ. (at 230 VAC input) |
| Input Frequency | 50/60 Hz |
| Output indicator | Yes (LED: Green) |
| Output voltage variable range | ?10% to 15% (with V. ADJ) |
| Start-up time | 1000 ms typ. (at 115 VAC input) 1000 ms typ. (at 230 VAC input) |
| Hold time | 20 ms typ. (at 115 VAC input) 95 ms typ. (at 230 VAC input) |
| Vibration resistance | 10 to 55 Hz, maximum 5 G, 0.42 mm single amplitude for 2 h each in X, Y, and Z directions |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | ?40 to 70°C |
| Ambient temperature (Storage) | ?40 to 85°C |
| Ambient humidity (OperatingStorage) | 95% max. (Storage humidity: 95% max.) |
| Cooling fan | No |
| Degree of protection | IP20 by EN/IEC 60529 |
| Weight | 250 g max. |
The Omron S8VK-S06024 Power Supply provides 60 W rated power with a 24 VDC output and 2.5 A rated current. It supports single-phase 85 to 264 VAC or 90 to 350 VDC input, together with the specified 265 to 300 VAC range, at 50/60 Hz. DIN rail mounting provides the installation arrangement, while push-in terminals and terminal blocks provide electrical connection points. Typical efficiency is specified at 87% with 115 VAC input and 89% with 230 VAC input. A green LED indicates output status, and the enclosure carries an IP20 protection rating. Connected equipment should require 24 VDC and keep combined current demand within the rated 2.5 A output. The source feeding the power supply should also fall within the supported incoming range. Output voltage compatibility should be checked before comparing current or rated wattage because a supply from another voltage class is not a direct substitute. When comparing 24 VDC models, power rating mainly changes how much output current is available for connected equipment. Installation planning should also consider DIN rail space and access to push-in terminals. For a 90 W DIN rail configuration providing 24 VDC at 3.75 A, compare the Omron S8VK-X09024-EIP.
