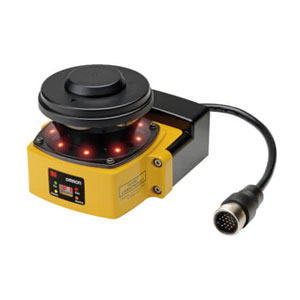

Omron OS32C-CBSP1 Safety Laser Scanner
Omron OS32C-CBSP1 is an I/O block for OS32C safety laser scanners with left-side cable access, designed for installations where rear wiring space is limited. The side-entry arrangement can make power, safety I/O, and communication wiring easier to route around machine frames, guards, and compact equipment layouts. Compatible OS32C scanners support a 270° detection field, 0.4° angular resolution, Type 3 classification, PLd/Safety Category 3 performance, and dual PNP OSSD safety outputs. The I/O block defines the cable-entry direction, while the connected scanner determines protective range, object resolution, and monitoring-zone behavior. The OS32C-CBSP1 belongs to the OS32C Series within the safety scanner connection range from Omron safety control products.
| Brand | Omron |
| Product | Safety Laser Scanner |
| Model Number | OS32C-CBSP1 |
Omron OS32C-CBSP1 Safety Laser Scanner - Technical Specifications
| Specification | Value |
|---|---|
| Max. Operating Range / Description | I/O block,With cable access from the left side |
| Sensor Type | Type 3 Safety Laser Scanner |
| Performance Level (PL)/ Safety Category | PLd/Safety Category 3 |
| Detection Capability | Configurable via the configuration tool; Non-transparent with a diameter of 30, 40, 50, 70mm (1.8% reflectivity or greater) (default: 70 mm) |
| Monitoring Zone | Monitoring Zone Set Count: (Safety Zone + 2 Warning Zones) x 70 sets |
| Operating Range | Safety Zone: 1.75 m (min. obj. resolution of 30 mm) 2.5 m (min. obj. resolution of 40 mm) 3.0 m (min. obj. resolution of 50 mm or 70 mm) Warning Zone: 10.0 m |
| Maximum Measurement Error | 100 mm (at range of 3 m or less); 110 mm (at distance greater than 3 m and up to 4m) |
| Detection Angle | 270° |
| Angular Resolution | 0.4° |
| Laser Beam Diameter | 6 mm at optics cover, 14 mm (typical) at 3 m. |
| Laser Scan Plane Height | 67mm from the bottom of the scanner |
| Response Time | Response time from ON to OFF: From 80 ms (2 scans) to 680 ms (up to 17 scans) *8 Response time from OFF to ON: Response time from ON to OFF + 100 ms to 60 s (Configurable) |
| Power Consumption | Normal operation: 5 W max; Standby mode: 3.75 W (without output load) |
| Safety Output (OSSD) | PNP transistor x 2, load current of 250 mA max., residual voltage of 2 V max.; load capacity of 2.2 µF max., leak current of 1 mA max. |
| Auxiliary Output (Non-Safety) | NPN/PNP transistor x 1, load current of 100 mA max., residual voltage of 2 V max., leak current of 1 mA max. |
| Warning Output (Non-Safety) | NPN/PNP transistor x 1, load current of 100 mA max., residual voltage of 2 V max., leak current of 1 mA max. |
| Connection Type | Power Cable: 18-pin mini-connector (pigtail) Communication Cable: M12, 4-pin connector |
| Ambient Temperature | Operation: -10 to 50 °C, Storage: -25 to 70 °C |
| Ambient Humidity | Operation & Storage: 95% RH max., non-condensing |
| Insulation Resistance | 20 MΩ or higher (500 VDC) |
| Enclosure Rating | IP65 |
| Dimensions (WxHxD) | 133.0 x 104.5 x 142.7 mm (except cable) |
| Power Cable | Up to 30 m |
| Weight (Main Unit only) | 1.3 kg |
The Omron OS32C-CBSP1 Safety Laser Scanner I/O Block is designed for compatible OS32C installations that require cable access from the left side of the scanner assembly. Side-entry wiring can make installation easier where machine frames, guards, panels, or mounting surfaces restrict space behind the scanner. The connected OS32C platform can support a 270° detection field, 0.4° angular resolution, Type 3 classification, PLd/Safety Category 3 performance, configurable monitoring zones, and dual PNP OSSD safety outputs. The I/O block defines the physical connection direction, while the connected scanner and sensor configuration determine protective range, minimum object resolution, response time, and safety-zone behavior.
OS32C-CBSP1 is therefore selected mainly by side cable access, scanner compatibility, available installation space, and maintenance access. The left-side connection can keep rear space clear and make wiring easier to reach during installation, inspection, or routine service around compact industrial machine structures safely. The OS32C system uses an 18-pin power connection together with an M12 communication interface, so the I/O block forms part of the scanner’s overall wiring architecture. It does not independently change optical or safety performance. For applications where rear cable routing is more suitable than side entry, see the OS32C-CBBP I/O block with back cable access.
