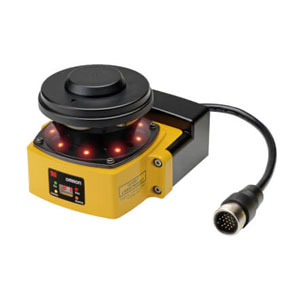

Omron OS32C-SN-4M Safety Laser Scanner
Omron OS32C-SN-4M is a replacement sensor block for the 4 m OS32C safety laser scanner platform, designed for extended-range systems where the sensing section requires service or replacement. It supports a 270° detection field and 0.4° angular resolution for configurable machine and area protection. Minimum object resolution can be set to 30, 40, 50, or 70 mm, with the maximum safety-zone range reaching 4 m at the appropriate setting. The modular sensor-block design allows compatible I/O components and cable-entry arrangements to remain in the installation when suitable. The OS32C platform supports Type 3, PLd/Safety Category 3 applications. The OS32C-SN-4M belongs to the OS32C Series within the extended-range scanner component range from Omron safety automation products.
| Brand | Omron |
| Product | Safety Laser Scanner |
| Model Number | OS32C-SN-4M |
Omron OS32C-SN-4M Safety Laser Scanner - Technical Specifications
| Specification | Value |
|---|---|
| Max. Operating Range / Description | 4 m |
| Sensor Type | Type 3 Safety Laser Scanner |
| Performance Level (PL)/ Safety Category | PLd/Safety Category 3 |
| Detection Capability | Configurable via the configuration tool; Non-transparent with a diameter of 30, 40, 50, 70mm (1.8% reflectivity or greater) (default: 70 mm) |
| Monitoring Zone | Monitoring Zone Set Count: (Safety Zone + 2 Warning Zones) x 70 sets |
| Operating Range | Safety Zone: 1.75 m (min. obj. resolution of 30 mm) 2.5 m (min. obj. resolution of 40 mm) 3.0 m (min. obj. resolution of 50 mm or 70 mm) Warning Zone: 10.0 m |
| Maximum Measurement Error | 100 mm (at range of 3 m or less); 110 mm (at distance greater than 3 m and up to 4m) |
| Detection Angle | 270° |
| Angular Resolution | 0.4° |
| Laser Beam Diameter | 6 mm at optics cover, 14 mm (typical) at 3 m. |
| Laser Scan Plane Height | 67mm from the bottom of the scanner |
| Response Time | Response time from ON to OFF: From 80 ms (2 scans) to 680 ms (up to 17 scans) *8 Response time from OFF to ON: Response time from ON to OFF + 100 ms to 60 s (Configurable) |
| Power Consumption | Normal operation: 5 W max; Standby mode: 3.75 W (without output load) |
| Safety Output (OSSD) | PNP transistor x 2, load current of 250 mA max., residual voltage of 2 V max.; load capacity of 2.2 µF max., leak current of 1 mA max. |
| Auxiliary Output (Non-Safety) | NPN/PNP transistor x 1, load current of 100 mA max., residual voltage of 2 V max., leak current of 1 mA max. |
| Warning Output (Non-Safety) | NPN/PNP transistor x 1, load current of 100 mA max., residual voltage of 2 V max., leak current of 1 mA max. |
| Connection Type | Power Cable: 18-pin mini-connector (pigtail) Communication Cable: M12, 4-pin connector |
| Ambient Temperature | Operation: -10 to 50 °C, Storage: -25 to 70 °C |
| Ambient Humidity | Operation & Storage: 95% RH max., non-condensing |
| Insulation Resistance | 20 MΩ or higher (500 VDC) |
| Enclosure Rating | IP65 |
| Dimensions (WxHxD) | 133.0 x 104.5 x 142.7 mm (except cable) |
| Power Cable | Up to 30 m |
| Weight (Main Unit only) | 1.3 kg |
The Omron OS32C-SN-4M Safety Laser Scanner Sensor Block provides the sensing section for the extended 4 m OS32C platform. Its 270° detection field supports wide machine and area monitoring, while 0.4° angular resolution helps define accurate protective boundaries. Minimum object resolution can be configured at 30, 40, 50, or 70 mm. The corresponding safety-zone range reaches 1.75 m at 30 mm, 2.5 m at 40 mm, 3.0 m at 50 mm, and up to 4.0 m at 70 mm. Up to 70 monitoring-zone sets can combine one safety zone with two warning zones for changing machine conditions.
OS32C-SN-4M is supplied as a replacement sensing block rather than as a complete scanner with I/O hardware. This modular arrangement allows the sensing section to be replaced while compatible connection components and cable-entry orientation can remain in service when appropriate. The associated OS32C system supports Type 3, PLd/Safety Category 3 applications and dual PNP OSSD safety outputs through the complete scanner assembly. The 4 m version is particularly relevant when the protected area requires greater reach than the standard 3 m platform. This supports extended-range maintenance while preserving compatible wiring and installation hardware. For installations where a maximum 3 m safety-zone range is sufficient, see the OS32C-SN replacement sensor block.
