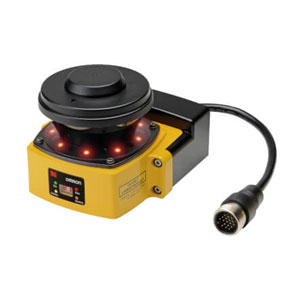

Omron OS32C-CBL 03M Safety Laser Scanner
Omron OS32C-CBL-03M is a 3 m power cable for OS32C safety laser scanners, designed for installations where the scanner is positioned close to the machine control wiring. The shorter cable length helps reduce unused cable around compact machines, guarded cells, and nearby control points while providing the required power and I/O connection. Compatible OS32C scanners support Type 3 operation, PLd/Safety Category 3 performance, a 270° detection field, 0.4° angular resolution, and dual PNP OSSD safety outputs. The cable provides electrical connectivity but does not determine the scanner’s protective range or object resolution. The OS32C-CBL-03M belongs to the OS32C Series within the safety scanner accessory range from Omron industrial safety components.
| Brand | Omron |
| Product | Safety Laser Scanner |
| Model Number | OS32C-CBL 03M |
Omron OS32C-CBL 03M Safety Laser Scanner - Technical Specifications
| Specification | Value |
|---|---|
| Max. Operating Range / Description | 3 m |
| Sensor Type | Type 3 Safety Laser Scanner |
| Performance Level (PL)/ Safety Category | PLd/Safety Category 3 |
| Detection Capability | Configurable via the configuration tool; Non-transparent with a diameter of 30, 40, 50, 70mm (1.8% reflectivity or greater) (default: 70 mm) |
| Monitoring Zone | Monitoring Zone Set Count: (Safety Zone + 2 Warning Zones) x 70 sets |
| Operating Range | Safety Zone: 1.75 m (min. obj. resolution of 30 mm) 2.5 m (min. obj. resolution of 40 mm) 3.0 m (min. obj. resolution of 50 mm or 70 mm) Warning Zone: 10.0 m |
| Maximum Measurement Error | 100 mm (at range of 3 m or less); 110 mm (at distance greater than 3 m and up to 4m) |
| Detection Angle | 270° |
| Angular Resolution | 0.4° |
| Laser Beam Diameter | 6 mm at optics cover, 14 mm (typical) at 3 m. |
| Laser Scan Plane Height | 67mm from the bottom of the scanner |
| Response Time | Response time from ON to OFF: From 80 ms (2 scans) to 680 ms (up to 17 scans) *8 Response time from OFF to ON: Response time from ON to OFF + 100 ms to 60 s (Configurable) |
| Power Consumption | Normal operation: 5 W max; Standby mode: 3.75 W (without output load) |
| Safety Output (OSSD) | PNP transistor x 2, load current of 250 mA max., residual voltage of 2 V max.; load capacity of 2.2 µF max., leak current of 1 mA max. |
| Auxiliary Output (Non-Safety) | NPN/PNP transistor x 1, load current of 100 mA max., residual voltage of 2 V max., leak current of 1 mA max. |
| Warning Output (Non-Safety) | NPN/PNP transistor x 1, load current of 100 mA max., residual voltage of 2 V max., leak current of 1 mA max. |
| Connection Type | Power Cable: 18-pin mini-connector (pigtail) Communication Cable: M12, 4-pin connector |
| Ambient Temperature | Operation: -10 to 50 °C, Storage: -25 to 70 °C |
| Ambient Humidity | Operation & Storage: 95% RH max., non-condensing |
| Insulation Resistance | 20 MΩ or higher (500 VDC) |
| Enclosure Rating | IP65 |
| Dimensions (WxHxD) | 133.0 x 104.5 x 142.7 mm (except cable) |
| Power Cable | Up to 30 m |
| Weight (Main Unit only) | 1.3 kg |
The Omron OS32C-CBL-03M Safety Laser Scanner Power Cable provides a 3 m power and I/O connection for compatible OS32C scanner installations. The shorter cable length is useful where the scanner is mounted close to the machine control wiring, helping reduce excess cable around compact machines, guarded cells, and nearby control points. Compatible OS32C scanners can support Type 3 operation, PLd/Safety Category 3 performance, a 270° detection field, 0.4° angular resolution, configurable monitoring zones, and dual PNP OSSD safety outputs. These are scanner functions; the CBL-03M cable provides the electrical connection required to support the installed unit.
The main selection factors for OS32C-CBL-03M are 3 m cable reach, routing convenience, compatibility, and distance to the control point. The cable does not change protective range, minimum object resolution, response time, or detection angle. The OS32C platform uses an 18-pin power interface and a separate M12 communication connection, keeping power and I/O wiring distinct from communication functions. The shorter lead can also simplify cable management by reducing unused loops inside compact equipment and keeping wiring easier to organize during installation. For installations where the scanner is positioned farther from the control wiring and a longer cable route is required, see the OS32C-CBL-10M 10 m power cable.
