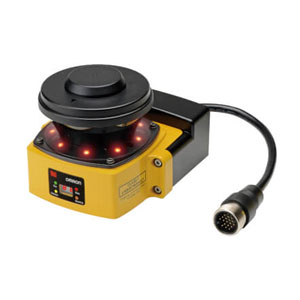

Omron OS32C-ECBL 02M Safety Laser Scanner
Omron OS32C-ECBL-02M is a 2 m communication cable for OS32C safety laser scanners, designed for configuration and monitoring connections close to the scanner. The shorter cable length helps keep wiring neat inside compact machines, guarded cells, and nearby control areas while connecting through the M12 communication interface. Compatible OS32C scanners support Type 3 operation, PLd/Safety Category 3 performance, a 270° detection field, 0.4° angular resolution, and configurable safety and warning zones. The cable handles communication rather than scanner power or safety I/O. The OS32C-ECBL-02M belongs to the OS32C Series within the safety scanner communication range from Omron industrial safety products.
| Brand | Omron |
| Product | Safety Laser Scanner |
| Model Number | OS32C-ECBL 02M |
Omron OS32C-ECBL 02M Safety Laser Scanner - Technical Specifications
| Specification | Value |
|---|---|
| Max. Operating Range / Description | 2 m |
| Sensor Type | Type 3 Safety Laser Scanner |
| Performance Level (PL)/ Safety Category | PLd/Safety Category 3 |
| Detection Capability | Configurable via the configuration tool; Non-transparent with a diameter of 30, 40, 50, 70mm (1.8% reflectivity or greater) (default: 70 mm) |
| Monitoring Zone | Monitoring Zone Set Count: (Safety Zone + 2 Warning Zones) x 70 sets |
| Operating Range | Safety Zone: 1.75 m (min. obj. resolution of 30 mm) 2.5 m (min. obj. resolution of 40 mm) 3.0 m (min. obj. resolution of 50 mm or 70 mm) Warning Zone: 10.0 m |
| Maximum Measurement Error | 100 mm (at range of 3 m or less); 110 mm (at distance greater than 3 m and up to 4m) |
| Detection Angle | 270° |
| Angular Resolution | 0.4° |
| Laser Beam Diameter | 6 mm at optics cover, 14 mm (typical) at 3 m. |
| Laser Scan Plane Height | 67mm from the bottom of the scanner |
| Response Time | Response time from ON to OFF: From 80 ms (2 scans) to 680 ms (up to 17 scans) *8 Response time from OFF to ON: Response time from ON to OFF + 100 ms to 60 s (Configurable) |
| Power Consumption | Normal operation: 5 W max; Standby mode: 3.75 W (without output load) |
| Safety Output (OSSD) | PNP transistor x 2, load current of 250 mA max., residual voltage of 2 V max.; load capacity of 2.2 µF max., leak current of 1 mA max. |
| Auxiliary Output (Non-Safety) | NPN/PNP transistor x 1, load current of 100 mA max., residual voltage of 2 V max., leak current of 1 mA max. |
| Warning Output (Non-Safety) | NPN/PNP transistor x 1, load current of 100 mA max., residual voltage of 2 V max., leak current of 1 mA max. |
| Connection Type | Power Cable: 18-pin mini-connector (pigtail) Communication Cable: M12, 4-pin connector |
| Ambient Temperature | Operation: -10 to 50 °C, Storage: -25 to 70 °C |
| Ambient Humidity | Operation & Storage: 95% RH max., non-condensing |
| Insulation Resistance | 20 MΩ or higher (500 VDC) |
| Enclosure Rating | IP65 |
| Dimensions (WxHxD) | 133.0 x 104.5 x 142.7 mm (except cable) |
| Power Cable | Up to 30 m |
| Weight (Main Unit only) | 1.3 kg |
The Omron OS32C-ECBL-02M Safety Laser Scanner Communication Cable provides a 2 m connection for configuration and monitoring of compatible OS32C scanners. Its shorter length is useful where the programming device, communication point, or monitoring interface is positioned close to the scanner, helping keep wiring tidy inside compact machines and guarded cells. The cable connects through the OS32C M12 communication interface and remains separate from the 18-pin power and safety I/O connection. Compatible scanner systems support Type 3 operation, PLd/Safety Category 3 performance, a 270° detection field, 0.4° angular resolution, configurable monitoring zones, and dual PNP OSSD safety outputs.
ECBL-02M cable supports communication only, so it does not change the scanner’s protective range, minimum object resolution, response time, or safety-zone behavior. These functions remain determined by the connected OS32C scanner or sensor block. The 2 m length is therefore most suitable when the communication route is short and excess cable should be avoided around the machine. It can support configuration access, monitoring, and related communication tasks while keeping power wiring separate. This keeps local scanner communication practical during setup, inspection, and routine maintenance. For installations where the communication point is farther from the scanner and additional routing distance is needed, see the OS32C-ECBL-05M 5 m communication cable.
