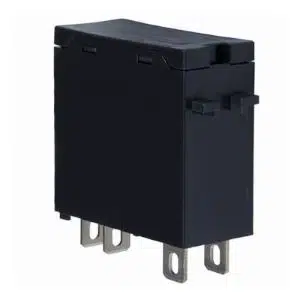

Omron G3R-OA202SZN-UTU DC5-24 Solid-state Relay
Omron G3R-OA202SZN-UTU DC5-24 is a single-phase, 2-element solid state relay with photocoupler isolation, socket mounting, and a plug-in terminal design. The rated input is 5 to 24 VDC with a 4 to 32 VDC operating range. The supplied table lists 75 to 264 VDC as the rated output voltage and separately lists 4 to 60 VDC as an output voltage range, while another output-load field is 0.1 to 2 mA. Input current is 15 mA max. and inrush current resistivity is 30 A for one 60 Hz cycle. An operating indicator and zero-cross function are equipped. The G3R-OA202SZN-UTU DC5-24 is included in the Solid state relay selection from Omron control and switching devices.
| Brand | Omron |
| Product | Solid State Relay |
| Model Number | G3R-OA202SZN-UTU DC5-24 |
Omron G3R-OA202SZN-UTU DC5-24 Solid-state Relay - Technical Specifications
| Specification | Value |
|---|---|
| Number Of Phases | Single-phase |
| Isolation Method | Photocoupler |
| Mounting | socket |
| Operating Indicator | Equipped |
| Terminal Structure | Plug-in terminal |
| Product Classification | Relay compatible High-speed response speed |
| Number Of Elements | 2 |
| Zero Cross Function | Equipped |
| Input Rated Voltage | 5 to 24 VDC |
| Input Current | 15 mA max. |
| Input Operate Voltage | 4 VDC max. |
| Input Release Voltage | 1 VDC min. |
| Output Rated Load Voltage | 75 to 264 VDC |
| Output Load Voltage Range | 4 to 60 VDC |
| Output Minimum Load Current | 100 µA to 3 A |
| Output Load Current | 0.1 to 2 mA |
| Output Inrush Current Resistivity | 30 A (60 Hz 1 cycle) |
| Operate Time | 20 ms max. |
| Release Time | 15 ms max. |
| Output On Voltage Drop | Main circuit: 1.6 V max. (RMS) |
| Leakage Current | 5 µA max. |
| Insulation Resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric Strength | 4000 VAC 50/60 Hz 1 min |
| Vibration Resistance | 10 to 55 to 10 Hz, 0.175 mm single amplitude (0.75 mm double amplitude) |
| Shock Resistance | 1000 m/s 2 (DIN Track mounting) |
| Ambient Temperature Operating | -30 to 80 ℃ (with no freezing or condensation) |
| Ambient Temperature Storage | -30 to 100 ℃ (with no freezing or condensation) |
| Ambient Humidity Operating | 45 to 85% RH |
| Weight | Approx. 18 g |
The Omron G3R-IDZR1SN-1 DC12-24 Solid State Relay uses a 12 to 24 VDC rated input and a 4 to 32 VDC output with a supplied 0.1 to 100 mA load-current range. It is a socket-mounted relay with photocoupler isolation, a plug-in terminal structure, and an equipped operating indicator. Operate time is listed as 15 ms max., with the same 15 ms max. value for release time. Output ON voltage drop is 1.6 V max. and leakage current is 5 µA max. Insulation resistance between input and output is 100 MΩ min., while dielectric strength is specified as 4000 VAC for 1 minute. The source-supported values identify this model as the slower-timing 12 to 24 VDC input configuration among the supplied G3R entries.
Mechanical resistance includes vibration from 10 to 55 to 10 Hz at 0.75 mm single amplitude or 1.5 mm double amplitude and shock resistance of 1000 m/s². Ambient operating temperature is -30 to 80°C without freezing or condensation, storage extends from -30 to 100°C, and operating humidity is 45 to 85% RH. The corresponding 5 VDC model in the same group is specified with substantially shorter 0.1 ms max. operate and release times while retaining the same output-voltage and load-current classes. For direct comparison, see G3R-IDZR1SN DC5.
