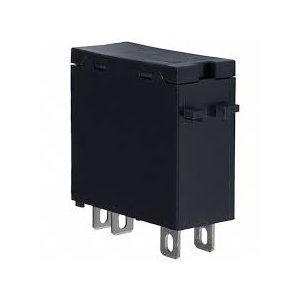

Omron G3R-IDZR1SN DC5 Solid-state Relay
Omron G3R-IDZR1SN DC5 is a socket-mounted I/O solid state relay with photocoupler isolation, a 5 VDC input, and a 4 to 32 VDC output. The supplied load-current range is 0.1 to 100 mA, while both operate and release times are specified at 0.1 ms max. Its plug-in terminal structure includes an operating indicator, with 1.6 V max. output ON voltage drop and 5 µA max. leakage current. Between input and output, insulation resistance is 100 MΩ min. and dielectric strength is 4000 VAC for 1 minute. The G3R-IDZR1SN DC5 I/O relay is part of the Solid state interface relay range from Omron industrial control components.
| Brand | Omron |
| Product | Solid State Relay |
| Model Number | G3R-IDZR1SN DC5 |
Omron G3R-IDZR1SN DC5 Solid-state Relay - Technical Specifications
| Specification | Value |
|---|---|
| Isolation Method | Photocoupler |
| Mounting | Socket |
| Operating Indicator | Equipped |
| Rated Voltage | 5 VDC |
| Rated Load Voltage | 4 to 32 VDC |
| Terminal Structure | Plug-in terminal |
| Load Current | 0.1 to 100 mA |
| Operate Time | 0.1 ms max. |
| Release Time | 0.1 ms max. |
| Output On Voltage Drop | 1.6 V max. |
| Leakage Current | 5 µA max. |
| Insulation Resistance | Between input and output: 100 MΩ min. |
| Dielectric Strength | Between input and output: 4000 VAC 1 min |
| Vibration Resistance | 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) |
| Shock Resistance | 1000 m/s2 |
| Ambient Temperature Operating | -30 to 80 ℃ (with no freezing or condensation) |
| Ambient Temperature Storage | -30 to 100 ℃ (with no freezing or condensation) |
| Ambient Humidity Operating | 45 to 85% RH |
| Weight | Approx. 18 g |
The Omron G3R-IDZR1SN DC5 Solid State Relay is a socket-mounted I/O relay using photocoupler isolation with a 5 VDC rated input. Its output range is specified from 4 to 32 VDC with a load-current range of 0.1 to 100 mA. The relay uses a plug-in terminal structure and includes an equipped operating indicator. Operate time is specified as 0.1 ms max., while release time is also 0.1 ms max. Output ON voltage drop is 1.6 V max. and leakage current is 5 µA max. These supplied values distinguish the DC5 model as the 5 VDC input member in this G3R I/O relay group. Insulation resistance between input and output is 100 MΩ min., while dielectric strength between the two circuits is specified as 4000 VAC for 1 minute.
Mechanical resistance includes vibration from 10 to 55 to 10 Hz at 0.75 mm single amplitude or 1.5 mm double amplitude and shock resistance of 1000 m/s². Ambient operating temperature is -30 to 80°C without freezing or condensation, storage temperature extends from -30 to 100°C, and operating humidity is 45 to 85% RH. A related G3R model changes the input to 12 to 24 VDC and uses 15 ms max. operate and release timing. For that configuration, see G3R-IDZR1SN-1 DC12-24.
