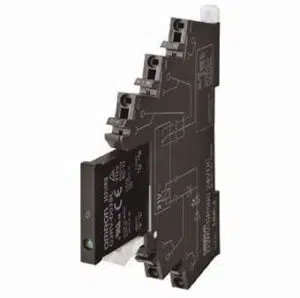

Omron G3RV-SR500-D DC24 Solid-state Relay
Omron G3RV-SR500-D DC24 is a single-phase, 2-element solid state relay with photo volt coupler isolation, a 24 VDC rated input, and Push-In Plus terminals. Its output is rated from 5 to 24 VDC with a 3 to 26.4 VDC load voltage range. The supplied table lists 9.0 mA DC input current and a separate 100 µA to 3 A load field, while another output-current field is 3 A for 10 ms. Output inrush current resistivity is 30 A for one 60 Hz cycle. DIN track or screw mounting, an equipped operating indicator, and a zero-cross function are also specified. The G3RV-SR500-D DC24 relay variant forms part of the Solid state relay product set from Omron control panel components.
| Brand | Omron |
| Product | Solid State Relay |
| Model Number | G3RV-SR500-D DC24 |
Omron G3RV-SR500-D DC24 Solid-state Relay - Technical Specifications
| Specification | Value |
|---|---|
| Number Of Phases | Single-phase |
| Isolation Method | Photo volt coupler |
| Mounting | DIN track mounting,Screw mounting |
| Operating Indicator | Equipped |
| Terminal Structure | Push-In Plus Terminal Block |
| Product Classification | Relay compatible Solid State Relay |
| Number Of Elements | 2 |
| Zero Cross Function | Equipped |
| Input Rated Voltage | 24 VDC |
| Input Current | DC: 9.0 mA |
| Input Operate Voltage | 21.6 VDC max. |
| Input Release Voltage | 1 VDC min. |
| Output Rated Load Voltage | 5 to 24 VDC |
| Output Load Voltage Range | 3 to 26.4 VDC |
| Output Minimum Load Current | 100 µA to 3 A |
| Output Load Current | 3 A (10 ms) |
| Output Inrush Current Resistivity | 30 A (60 Hz 1 cycle) |
| Operate Time | 10 µA max. (at 24 VDC) |
| Release Time | 1/2 cycle of load power source + 1 ms max. |
| Output On Voltage Drop | Main circuit: 1.6 V max. (RMS) Alarm output: 1.8 V max. |
| Leakage Current | Main circuit: 2 mA max. (at 200 VAC) Alarm output: 0.1 mA max. |
| Insulation Resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric Strength | 2500 VAC 50/60 Hz 1 min |
| Vibration Resistance | 10 to 55 to 10 Hz, 0.175 mm single amplitude (0.75 mm double amplitude) |
| Shock Resistance | 300 m/s 2 (DIN Track mounting) |
| Ambient Temperature Operating | -30 to 80 ℃ (with no freezing or condensation) |
| Ambient Temperature Storage | -30 to 100 ℃ (with no freezing or condensation) |
| Ambient Humidity Operating | 45 to 85% RH |
| Weight | Approx. 30 g |
The Omron G3RV-SR500-A DC24 Solid State Relay uses a single-phase, 2-element structure with photo volt coupler isolation and supports DIN track or screw mounting. A Push-In Plus Terminal Block is specified, and both the operating indicator and zero-cross function are equipped. Rated input voltage is 24 VDC, while input operate voltage is 21.6 VDC max. and release voltage is 1 VDC min. The output is rated from 5 to 24 VDC with a 3 to 26.4 VDC load-voltage range. One load field is specified as 100 µA to 3 A, while another output-current field lists 30 A for 10 ms. Output inrush current resistivity is 30 A for one 60 Hz cycle. These values define the SR500-A configuration within the supplied G3RV data.
Main-circuit output ON voltage drop is 1.6 V max. RMS, while the supplied alarm-output value is 1.8 V max. Main-circuit leakage current is listed as 2 mA max. at 200 VAC and alarm-output leakage as 0.1 mA max. Insulation resistance is 100 MΩ min. at 500 VDC, with dielectric strength of 2500 VAC at 50/60 Hz for 1 minute. Operating temperature is -30 to 80°C without freezing or condensation. For the related SR500-D version with a 3 A for 10 ms output-current field, see G3RV-SR500-D DC24.
