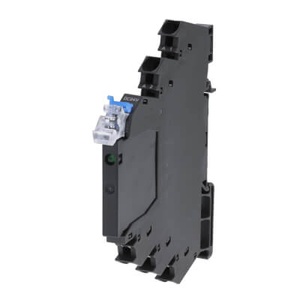

Omron G3RV-ST500-D DC24 Solid-state Relay
Omron G3RV-ST500-D DC24 is a slim solid state relay with photocoupler isolation and DIN rail mounting. The supplied specification lists a 19.2 to 26.4 V supply range, a 3 to 26.4 V operating range, and a 3 A rated current for this DIN-rail configuration. This version uses push-in terminals and is identified as a single-pole model in the source data. The source row identifies the model as part of the G3RV family. It does not provide separate operate-time, release-time, leakage-current, insulation-resistance, or dielectric-strength values, so those specifications are not added here. The G3RV-ST500-D DC24 belongs to the electronic relay selection from Omron industrial control components.
| Brand | Omron |
| Product | Solid State Relay |
| Model Number | G3RV-ST500-D DC24 |
Omron G3RV-ST500-D DC24 Solid-state Relay - Technical Specifications
| Specification | Value |
|---|---|
| Number Of Phases | 1 |
| Isolation Method | Photocoupler |
| Mounting | DIN rail |
| Terminal Type | Push-in |
| Rated Operation Current Ie At Ac 1 | 3 A |
| Supply Voltage Dc | 19.2-26.4 V |
| Operating Voltage Range Dc | 3-26.4 V |
The Omron G3RV-ST500-D DC24 Solid State Relay is a DIN-rail model using photocoupler isolation and a 3 A rated current. The supplied row lists a 19.2 to 26.4 V supply range and a 3 to 26.4 V operating range. This version uses push-in terminals, which is the main terminal detail provided for the ST500-D entry. The source identifies one pole for this model but does not populate separate values for operate time, release time, output ON voltage drop, leakage current, insulation resistance, dielectric strength, vibration resistance, shock resistance, or ambient temperature. Those fields are therefore not added from outside the supplied material. The available data establishes the model primarily through its DIN-rail format, photocoupler isolation, 3 A current class, voltage ranges, and push-in connection style.
The ST500-D row is noticeably more compact than the detailed SR-series rows in the same file, so its description must remain limited to the values actually present. A related ST-series model in the supplied data uses the same 3 A rated current, the same 19.2 to 26.4 V supply range, and the same 3 to 26.4 V operating range, but its terminal entry is screw rather than push-in. That comparison helps separate the two closely related entries without introducing unsupported application claims. For the corresponding screw-terminal version, see G3RV-ST700-D DC24.
