Omron G3RZ-201SLN DC24 Solid-state Relay

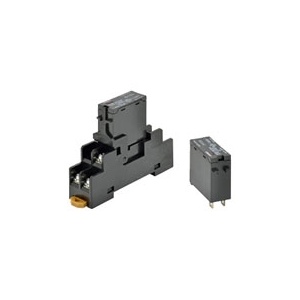

Omron G3RZ-201SLN DC24 is a socket-type solid state relay using photo volt coupler isolation and a 24 VDC input. Its plug-in terminal structure supports outputs from 5 to 100 VDC and 5 to 240 VAC, with a supplied load-current range of 100 µA to 1 A. The operating indicator is equipped for this model, while operate and release times are specified as 6 ms max. and 10 ms max. Leakage current is 10 µA max. at 125 VDC and 100 µA max. at 200 VAC. The G3RZ-201SLN DC24 is part of the Solid state switching family from Omron industrial electronic relays.
| Brand | Omron |
| Product | Solid State Relay |
| Model Number | G3RZ-201SLN DC24 |
Omron G3RZ-201SLN DC24 Solid-state Relay - Technical Specifications
| Specification | Value |
|---|---|
| Isolation Method | Photo volt coupler |
| Mounting | Socket |
| Operating Indicator | Equipped |
| Rated Voltage | 24 VDC |
| Rated Load Voltage | 5 to 100 VDC 5 to 240 VAC |
| Terminal Structure | Plug-in terminal |
| Load Current | 100 µA to 1 A |
| Operate Time | 6 ms max. |
| Release Time | 10 ms max. |
| Leakage Current | 10 µA max. (at 125 VDC) 100 µA max. (at 200 VAC) |
| Insulation Resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric Strength | Between input and output: 2500 VAC 50/60 Hz 1 min |
| Vibration Resistance | 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) |
| Shock Resistance | 1000 m/s2 |
| Ambient Temperature Operating | -30 to 80 ℃ (with no freezing or condensation) |
| Ambient Temperature Storage | -30 to 100 ℃ (with no freezing or condensation) |
| Ambient Humidity Operating | 45 to 85 % |
| Weight | Approx. 20 g |
The Omron G3RZ-201SLN DC24 Solid State Relay uses a 24 VDC input together with photo volt coupler isolation, socket mounting, and plug-in terminals. The supplied output range is 5 to 100 VDC or 5 to 240 VAC, and the listed load-current range is 100 µA to 1 A. An operating indicator is equipped for status indication. The relay specifies 6 ms max. operate time and 10 ms max. release time. Leakage current is listed as 10 µA max. at 125 VDC and 100 µA max. at 200 VAC. Between the input and output, insulation resistance is 100 MΩ min. at 500 VDC and dielectric strength is 2500 VAC at 50/60 Hz for 1 minute. These electrical values place the DC24 model alongside the other G3RZ input-voltage variants in the source.
Mechanical resistance is specified as 10 to 55 to 10 Hz vibration at 0.75 mm single amplitude or 1.5 mm double amplitude, together with 1000 m/s² shock resistance. The ambient operating range is -30 to 80°C without freezing or condensation, the storage range is -30 to 100°C, and operating humidity is 45 to 85%. A lower-input-voltage version in the same family carries the same output, current, timing, leakage, insulation, and environmental values. For that comparison, see G3RZ-201SLN DC5.
