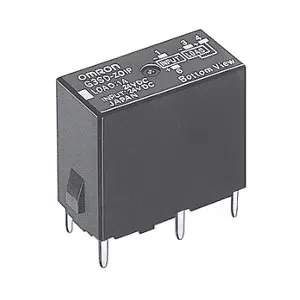

Omron G3S-201PL Solid-state Relay
Omron G3S-201PL is a single-phase, 2-element solid state relay with photocoupler isolation and a 5 VDC rated input. Its input operating range is 4 to 6 VDC, while the output is rated from 100 to 240 VAC with a 75 to 264 VAC load voltage range. The supplied data lists 0.1 to 1 A at 40°C in one load field and 15 A at 25°C in another. Output inrush current resistivity is 15 A for one 60 Hz cycle. The model uses detachable screwless clamp terminals, supports DIN track or screw mounting, and includes a yellow indicator and zero-cross function. The G3S-201PL belongs to the SSR product range from Omron relay components.
| Brand | Omron |
| Product | Solid State Relay |
| Model Number | G3S-201PL |
Omron G3S-201PL Solid-state Relay - Technical Specifications
| Specification | Value |
|---|---|
| Number Of Phases | Single-phase |
| Isolation Method | Photocoupler |
| Mounting | DIN track mounting,Screw mounting |
| Operating Indicator | Equipped (Yellow) |
| Terminal Structure | Screwless clamp terminals (detachable) |
| Product Classification | For Single-phase Heater |
| Number Of Elements | 2 |
| Zero Cross Function | Equipped |
| Input Rated Voltage | 5 VDC |
| Input Current | 7 mA max. (at 12 VDC) |
| Input Operate Voltage | 9.2 VDC max. |
| Input Release Voltage | 1 VDC min. |
| Output Rated Load Voltage | 100 to 240 VAC |
| Output Load Voltage Range | 75 to 264 VAC |
| Output Minimum Load Current | 0.1 to 1 A at 40°C |
| Output Load Current | 15 A (at 25 ℃) |
| Output Inrush Current Resistivity | 15 A (60 Hz 1 cycle) |
| Operate Time | 1 ms max. |
| Release Time | 1/2 cycle of load power source + 1 ms max. |
| Output On Voltage Drop | Main circuit: 1.6 V max. (RMS) Alarm output: 1.8 V max. |
| Leakage Current | Main circuit: 2 mA max. (at 200 VAC) Alarm output: 0.1 mA max. |
| Insulation Resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric Strength | 2500 VAC 50/60 Hz 1 min |
| Vibration Resistance | 10 to 55 to 10 Hz, 0.175 mm single amplitude (0.75 mm double amplitude) |
| Shock Resistance | 1000 m/s 2 (DIN Track mounting) |
| Ambient Temperature Operating | -30 to 80 ℃ (with no freezing or condensation) |
| Ambient Temperature Storage | -30 to 100 ℃ (with no freezing or condensation) |
| Ambient Humidity Operating | 45 to 85% RH |
| Weight | Approx. 13 g |
The Omron G3S-201PL Solid State Relay is a single-phase, 2-element model with photocoupler isolation, DIN track or screw mounting, and detachable screwless clamp terminals. Its rated input is 5 VDC with a 4 to 6 VDC operating range. The source lists 7 mA max. input current at 12 VDC, 9.2 VDC max. input operate voltage, and 1 VDC min. input release voltage; these values are reproduced as supplied rather than reconciled. The output is rated from 100 to 240 VAC with a 75 to 264 VAC load voltage range. One load field lists 0.1 to 1 A at 40°C, while another lists 15 A at 25°C. Output inrush current resistivity is 15 A for one 60 Hz cycle. A yellow operating indicator and zero-cross function are equipped.
Operate time is 1 ms max., while release time is one-half cycle of the load power source plus 1 ms max. Main-circuit output ON voltage drop is 1.6 V max. RMS and main-circuit leakage current is 2 mA max. at 200 VAC. Insulation resistance is 100 MΩ min. at 500 VDC and dielectric strength is 2500 VAC at 50/60 Hz for 1 minute. Operating temperature is -30 to 80°C without freezing or condensation. For the related PD-suffix version carrying the same principal specifications, see G3S-201PL-PD.
