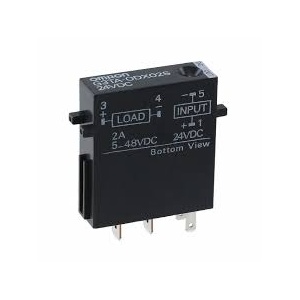

Omron G3TA-ODX02S-US DC24 Solid-state Relay
Omron G3TA-ODX02S-US DC24 is a socket-mounted I/O solid state relay with photocoupler isolation and a 24 VDC input. The output is specified from 5 to 48 VDC with a load-current range of 0.01 to 2 A at 60°C. Its plug-in terminal structure includes an operating indicator, while operate time is 0.5 ms max. and release time is 2 ms max. Output ON voltage drop is 1.6 V max. and leakage current is 1 mA max. Between input and output, dielectric strength is specified as 4000 VAC at 50/60 Hz for 1 minute. The G3TA-ODX02S-US DC24 forms part of the I/O relay product portfolio from Omron industrial interface components.
| Brand | Omron |
| Product | Solid State Relay |
| Model Number | G3TA-ODX02S-US DC24 |
Omron G3TA-ODX02S-US DC24 Solid-state Relay - Technical Specifications
| Specification | Value |
|---|---|
| Isolation Method | Photocoupler |
| Mounting | Socket |
| Operating Indicator | Equipped |
| Rated Voltage | 24 VDC |
| Rated Load Voltage | 5 to 48 VDC |
| Terminal Structure | Plug-in terminal |
| Load Current | 0.01 to 2 A (at 60 ℃) |
| Case Color | Black |
| Operate Time | 0.5 ms max. |
| Release Time | 2 ms max. |
| Output On Voltage Drop | 1.6 V max. |
| Leakage Current | 1 mA max. |
| Insulation Resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric Strength | Between input and output: 4000 VAC 50/60 Hz 1 min |
| Vibration Resistance | 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) |
| Shock Resistance | 1000 m/s2 |
| Ambient Temperature Operating | -30 to 80 ℃ (with no freezing or condensation) |
| Ambient Temperature Storage | -30 to 100 ℃ (with no freezing or condensation) |
| Ambient Humidity Operating | 45 to 85 % |
| Weight | Approx. 23 g |
The Omron G3TA-ODX02S-US DC24 Solid State Relay is a socket-mounted I/O relay with photocoupler isolation, a 24 VDC input, a plug-in terminal structure, and an equipped operating indicator. Its output is rated from 5 to 48 VDC with a supplied load-current range of 0.01 to 2 A at 60°C. Operate time is specified as 0.5 ms max. and release time as 2 ms max. Output ON voltage drop is 1.6 V max., while leakage current is 1 mA max. Insulation resistance is 100 MΩ min. at 500 VDC. Dielectric strength between input and output is 4000 VAC at 50/60 Hz for 1 minute. The row also identifies a black case for this plug-in configuration. These values define the DC24 version in the supplied G3TA data.
Mechanical specifications include vibration from 10 to 55 to 10 Hz at 0.75 mm single amplitude or 1.5 mm double amplitude and shock resistance of 1000 m/s². Ambient operating temperature is -30 to 80°C without freezing or condensation, storage temperature is -30 to 100°C, and humidity is 45 to 85%. The closely related DC12-suffix row in the same series lists the same 5 to 48 VDC output class but different source-supplied input details. For direct comparison, see G3TA-ODX02S-US DC12.
