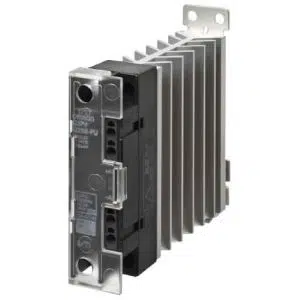

Omron G3PJ-215B-PU DC12-24 Solid-state Relay
The Omron G3PJ-215B-PU DC12-24 Solid-state Relay (SSR) delivers 24 to 240 VDC input, 100 to 240 VAC output, and 15 A (at 25 β) load performance reliably. This relay features a Three phase, 2-element structure with Phototriac isolation, an Equipped zero-cross function for noise-free switching, and an Equipped (Yellow) operating indicator for real-time status monitoring. Its Screw terminal socket simplifies installation, while 150 A (60 Hz 1 cycle) inrush current resistivity, it ensures stable operation across its 19 to 264 VDC input range. Manufactured by Omron and listed under Omron Solid State Relay solutions, this model belongs to the G3PJ Series.
| Brand | Omron |
| Product Type | Solid State Relay |
| Model Number | G3PJ-215B-PU DC12-24 |
Omron G3PJ-215B-PU DC12-24 Solid-state Relay - Technical Specifications
| Specification | Value |
|---|---|
| Product classification | For 3-phase Heater |
| Number of phases | Three phase |
| Number of elements | 2 |
| Isolation method | Phototriac |
| Zero cross function | Equipped |
| Operating indicator | Equipped (Yellow) |
| Terminal structure | Screw terminal |
| Mounting | DIN track mounting,Screw mounting |
| Input Rated Voltage | 24 to 240 VDC |
| Input Operating voltage range | 19 to 264 VDC |
| Input current | 7 mA max. |
| Input Operate voltage | 9.6 VDC max. |
| Input Release voltage | 1 VDC min. |
| Output Rated load voltage | 100 to 240 VAC |
| Output Load voltage range | 75 to 264 VAC |
| Output Minimum load current | 0.2 VDC |
| Output Load Current | 15 A (at 25 β) |
| Output Inrush current resistivity | 150 A (60 Hz 1 cycle) |
| Operate time | 1/2 cycle of load power source + 1 ms max. |
| Release time | 1/2 cycle of load power source + 1 ms max. |
| Output ON voltage drop | 1.6 V max. (RMS) 1.8 V (RMS) max. |
| Leakage current | 10 mA max. (at 200 VAC) 20 mA max. (at 480 VAC) |
| Insulation resistance | 100 MΞ© min. (at 500 VDC) |
| Dielectric strength | 2500 VAC 50/60 Hz 1 min |
| Vibration resistance | 10 to 55 to 10 Hz, 0.175 mm single amplitude (0.75 mm double amplitude) |
| Shock resistance | 294 m/s 2 (DIN Track mounting) |
| Ambient temperature (Operating) | -30 to 80 β (with no freezing or condensation) |
| Ambient temperature (Storage) | -30 to 100 β (with no freezing or condensation) |
| Ambient humidity (Operating) | 45 to 85% RH |
| Weight | Approx. 240 g |
