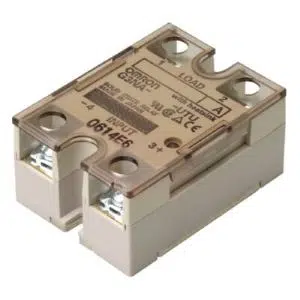

Omron G3NA-D210B-UTU DC5-24 Solid-state Relay
Omron G3NA-D210B-UTU DC5-24 is a single-phase, 3-element solid state relay using phototriac isolation, screw mounting, screw terminals, an operating indicator, and an equipped zero-cross function. Its rated input is 5 to 24 VDC with a 4 to 32 VDC operating range. The output rated load voltage is 5 to 200 VAC, while the specified output load voltage range is 4 to 220 VAC. Output load current is 0.1 to 20 A with a heat sink at 40°C and 0.1 to 4 A without one. Inrush current resistivity is 20 A for one 60 Hz cycle. The G3NA-D210B-UTU DC5-24 belongs to the G3NA series under the SSR range from Omron switching products.
| Brand | Omron |
| Product | Solid State Relay |
| Model Number | G3NA-D210B-UTU DC5-24 |
Omron G3NA-D210B-UTU DC5-24 Solid-state Relay - Technical Specifications
| Specification | Value |
|---|---|
| Number Of Phases | Single-phase |
| Isolation Method | Phototriac |
| Mounting | Screw mounting |
| Operating Indicator | Equipped |
| Terminal Structure | Screw terminal |
| Product Classification | For Single-phase Heater |
| Number Of Elements | 3 |
| Zero Cross Function | Equipped |
| Input Rated Voltage | 5 to 24 VDC |
| Input Current | 7 mA max. |
| Input Operate Voltage | 4 VDC max. |
| Input Release Voltage | 1 VDC min. |
| Output Rated Load Voltage | 5 to 200 VAC |
| Output Load Voltage Range | 4 to 220 VAC |
| Output Minimum Load Current | 0.2 VDC |
| Output Load Current | With heat sink (at 40 ℃): 0.1 to 20 A Without heat sink (at 40 ℃): 0.1 to 4 A |
| Output Inrush Current Resistivity | 20 A (60 Hz 1 cycle) |
| Operate Time | 1 ms max. |
| Release Time | 5 ms max. |
| Output On Voltage Drop | 1.5 V max. (RMS) |
| Leakage Current | 5 mA max. (at 100 VAC) |
| Insulation Resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric Strength | 2500 VAC 50/60 Hz 1 min |
| Vibration Resistance | 10 to 55 to 10 Hz, 0.175 mm single amplitude (0.75 mm double amplitude) |
| Shock Resistance | 1000 m/s 2 (DIN Track mounting) |
| Ambient Temperature Operating | -30 to 80 ℃ (with no freezing or condensation) |
| Ambient Temperature Storage | -30 to 100 ℃ (with no freezing or condensation) |
| Ambient Humidity Operating | 45 to 85% RH |
| Weight | Approx. 70g |
The Omron G3NA-D210B-UTU DC5-24 Solid State Relay is a single-phase, 3-element SSR with phototriac isolation, screw mounting, screw terminals, an operating indicator, and an equipped zero-cross function. Rated input voltage is 5 to 24 VDC with a 4 to 32 VDC operating range. Input current is 7 mA max., input operate voltage is 4 VDC max., and release voltage is 1 VDC min. Its rated output load voltage is 5 to 200 VAC and the output load voltage range is 4 to 220 VAC. Output load current is 0.1 to 20 A with a heat sink at 40°C and 0.1 to 4 A without a heat sink. Output inrush current resistivity is specified as 20 A for one 60 Hz cycle.
Operate time is 1 ms max. and release time is 5 ms max. The output ON voltage drop is 1.5 V max. RMS, while leakage current is 5 mA max. at 100 VAC. Insulation resistance is 100 MΩ min. at 500 VDC and dielectric strength is 2500 VAC at 50/60 Hz for 1 minute. Ambient operating temperature ranges from -30 to 80°C without freezing or condensation. For a 5 to 24 VDC G3NA model with a 24 to 240 VAC rated output and 220 A inrush current resistivity, see the G3NA-220B-UTU DC5-24.
