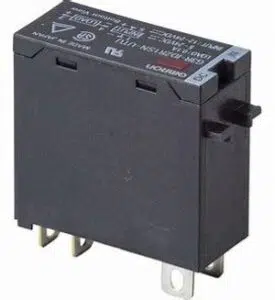

Omron G3R-IDZR1SN-UTU DC12-24 Solid-state Relay
Omron G3R-IDZR1SN-UTU DC12-24 is a single-phase, 2-element I/O solid state relay with photocoupler isolation and socket mounting. Its rated input is 12 to 24 VDC with a 6.6 to 32 VDC operating range, while the output is rated from 4 to 32 VDC and the supplied load-current field lists 0.1 to 100 mA. Input current is 8 mA max., operate voltage is 6.6 VDC max., and release voltage is 3.6 VDC min. This plug-in model includes an operating indicator and zero-cross function, with 12 A inrush current resistivity. The G3R-IDZR1SN-UTU DC12-24 relay configuration belongs to the Solid state I/O product group from Omron relay and automation products.
| Brand | Omron |
| Product | Solid State Relay |
| Model Number | G3R-IDZR1SN-UTU DC12-24 |
Omron G3R-IDZR1SN-UTU DC12-24 Solid-state Relay - Technical Specifications
| Specification | Value |
|---|---|
| Number Of Phases | Single-phase |
| Isolation Method | Photocoupler |
| Mounting | socket |
| Operating Indicator | Equipped |
| Terminal Structure | Plug-in terminal |
| Product Classification | Relay compatible High-speed response speed |
| Number Of Elements | 2 |
| Zero Cross Function | Equipped |
| Input Rated Voltage | 12 to 24 VDC |
| Input Current | 8 mA max. |
| Input Operate Voltage | 6.6 VDC max. |
| Input Release Voltage | 3.6 VDC min. |
| Output Rated Load Voltage | 4 to 32 VDC |
| Output Load Voltage Range | 4 to 60 VDC |
| Output Minimum Load Current | 100 µA to 3 A |
| Output Load Current | 0.1 to 100 mA |
| Output Inrush Current Resistivity | 12 A (60 Hz 1 cycle) |
| Operate Time | 0.5 ms max. |
| Release Time | 2 ms max. |
| Output On Voltage Drop | Main circuit: 1.6 V max. (RMS) |
| Leakage Current | 5 µA max. |
| Insulation Resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric Strength | 4000 VAC 50/60 Hz 1 min |
| Vibration Resistance | 10 to 55 to 10 Hz, 0.175 mm single amplitude (0.75 mm double amplitude) |
| Shock Resistance | 1000 m/s 2 (DIN Track mounting) |
| Ambient Temperature Operating | -30 to 80 ℃ (with no freezing or condensation) |
| Ambient Temperature Storage | -30 to 100 ℃ (with no freezing or condensation) |
| Ambient Humidity Operating | 45 to 85% RH |
| Weight | Approx. 18 g |
The Omron G3R-IDZR1SN DC5 Solid State Relay uses a 5 VDC rated input together with a 4 to 32 VDC output range and a supplied load-current range of 0.1 to 100 mA. The relay is socket mounted and uses a plug-in terminal structure with photocoupler isolation. An operating indicator is equipped. Both operate time and release time are specified as 0.1 ms max. Output ON voltage drop is 1.6 V max., while leakage current is 5 µA max. Insulation resistance between input and output is 100 MΩ min., and dielectric strength is specified as 4000 VAC for 1 minute. These listed electrical characteristics establish the DC5 configuration within the G3R I/O solid state relay group and separate it from models using different input-voltage and timing specifications.
Vibration resistance is specified from 10 to 55 to 10 Hz at 0.75 mm single amplitude or 1.5 mm double amplitude, while shock resistance is 1000 m/s². Ambient operation covers -30 to 80°C without freezing or condensation. Storage temperature extends from -30 to 100°C, with operating humidity from 45 to 85% RH. A related 12 to 24 VDC version in the same family is specified with 15 ms max. operate and release times while retaining the same 4 to 32 VDC output and 0.1 to 100 mA load range. See G3R-IDZR1SN-1 DC12-24.
