Omron E2EH-X3D1-M1G Proximity Sensor

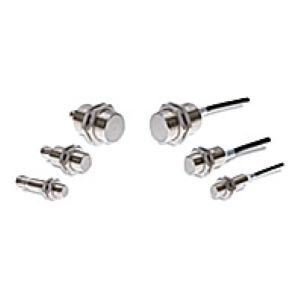

Omron E2EH-X3D1-M1G is an M12 shielded high-temperature inductive proximity sensor with a 3 mm sensing distance and a 0 to 2.4 mm setting distance. It uses a DC 2-wire NO output through an M12 connector and operates from 12 to 24 VDC. Ferrous metal is the specified detectable object, paired with an iron 12 × 12 × 1 mm standard sensing object. Response frequency is 500 Hz, while control output is rated from 3 to 100 mA. Red and yellow LEDs provide operation and setting indication, with surge and load short-circuit protection specified. The E2EH-X3D1-M1G is grouped with DC 2-wire proximity sensors from Omron high-temperature sensing products.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2EH-X3D1-M1G |
Omron E2EH-X3D1-M1G Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M12 |
| Mounting type | Shielded |
| Sensing Distance | 3 mm |
| Setting Distance | 0 to 2.4 mm |
| Output configuration | DC 2-wire |
| Operation Mode | NO |
| Connection Method | M12 Connector |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 12 × 12 × 1 mm |
| Response Frequency | 500 Hz |
| Power Supply Voltage | 12 to 24 VDC |
| Protection Circuit | Surge suppressor, Load short-circuit protection |
| Ambient Temperature Range | Operating: 0 to 100°C Storage: −25 to 70° (with no icing or condensation) |
| Degree of Protection | IEC IP67, DIN 40050-9 IP69K |
| Control Output | 3 to 100 mA |
| Indicators | Operation indicator (red), Setting indicator (yellow) |
| Materials | Stainless steel (SUS316L), PBT, Heat-resistant PVC cable. |
| Weight | Approx. 30 g |
The Omron E2EH-X3D1-M1G Proximity Sensor uses an M12 shielded inductive sensing body with a 3 mm sensing distance and a 0 to 2.4 mm setting distance. It provides a DC 2-wire NO output through an M12 connector and operates from 12 to 24 VDC. Ferrous metal is the specified detectable object, with an iron 12 × 12 × 1 mm standard sensing object. Response frequency is 500 Hz, while control output is rated from 3 to 100 mA. Red and yellow indicators provide operation and setting status. Surge suppression and load short-circuit protection are specified, while SUS316L stainless steel is listed among the principal construction materials.
Operating conditions for the E2EH-X3D1-M1G extend from 0 to 100°C, while storage is specified from -25 to 70°C without icing or condensation. IEC IP67 and DIN 40050-9 IP69K are listed for environmental protection. The M12 shielded sensing format combines a 3 mm range with DC 2-wire NO operation and detachable connector wiring. PBT and heat-resistant PVC are also included among the specified construction materials. The 500 Hz response frequency supports relatively fast metal-target detection in the stated temperature range. For another E2EH model with the same 3 mm sensing distance but NC switching and a pre-wired 2 m cable, see E2EH-X3D2 2M.
