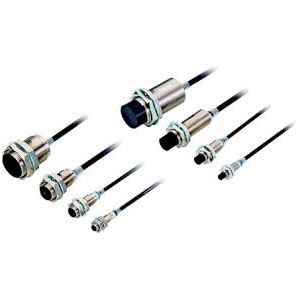

Omron E2EQ-X10D1-M1GJ 0.3M Proximity Sensor
Omron E2EQ-X10D1-M1GJ 0.3M is an M30 shielded inductive proximity sensor with a 10 mm sensing distance and a 0 to 8 mm setting distance. It provides a DC 2-wire NO output through an M12 pre-wired standard connector with a 0.3 m cable and operates from 12 to 24 VDC. Ferrous metal is specified as the sensing target, paired with an iron 30 × 30 × 1 mm standard sensing object. Response frequency is 400 Hz, and control output is rated from 3 to 100 mA. Red and green indicators provide operation and setting status. The E2EQ-X10D1-M1GJ 0.3M belongs to connector-type proximity sensors from Omron automation sensing solutions.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2EQ-X10D1-M1GJ 0.3M |
Omron E2EQ-X10D1-M1GJ 0.3M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M30 |
| Mounting type | Shielded |
| Sensing Distance | 10 mm |
| Setting Distance | 0 to 8 mm |
| Output configuration | DC 2-wire |
| Operation Mode | NO |
| Connection Method | M12 Pre-wired Standard Connector 0.3 M Cable |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 30 × 30 × 1 mm |
| Response Frequency | 400 Hz |
| Power Supply Voltage | 12 to 24 VDC |
| Protection Circuit | Load short-circuit protection, Surge suppressor |
| Ambient Temperature Range | Operating/Storage: −25 to 70°C (with no icing or condensation) |
| Degree of Protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Control Output | 3 to 100 mA |
| Indicators | Operation indicator (red), Setting indicator (green) |
| Materials | Fluororesin coating (Base material: brass) , Fluororesin, Fluororesin coating (Base material: brass) , Zinc-plated iron. |
| Weight | Approx. 190 g |
The Omron E2EQ-X10D1-M1GJ 0.3M Proximity Sensor uses an M30 shielded inductive sensing body with a 10 mm sensing distance and a 0 to 8 mm setting distance. It provides a DC 2-wire NO output through an M12 pre-wired standard connector with a 0.3 m cable and operates from 12 to 24 VDC. Ferrous metal is the specified detectable object, with an iron 30 × 30 × 1 mm standard sensing object. Response frequency is 400 Hz, while control output is rated from 3 to 100 mA. Red and green indicators show operation and setting status. Load short-circuit protection and surge suppression are specified, together with fluororesin-coated construction components.
Operating and storage conditions for the E2EQ-X10D1-M1GJ extend from -25 to 70°C without icing or condensation. IEC 60529 IP67 and an in-house oil-resistant rating are listed. The shielded M30 format provides the stated 10 mm sensing distance, while the short pre-wired lead terminates in an M12 standard connector for detachable machine wiring. Fluororesin coating over the listed brass base material and zinc-plated iron are included among the construction details. The DC 2-wire NO arrangement operates over the specified 12 to 24 VDC supply range. For another E2EQ model with a 15 mm sensing distance and an M12 Smartclick connector, see E2EQ-X15B1D30-M1TJ 0.3M.
