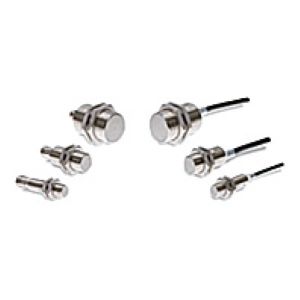

Omron E2EH-X3D2 2M Proximity Sensor
Omron E2EH-X3D2 2M is an M12 shielded inductive model offering a 3 mm sensing distance and 0 to 2.4 mm setting range. It operates as a DC 2-wire NC sensor with a pre-wired 2 m cable, 12 to 24 VDC supply, and 500 Hz response frequency. The E2EH-X3D2 2M belongs to the E2EH Series intended for higher-temperature sensing conditions, while alternative wiring and body options can be found across the wider 3 mm DC 2-wire proximity sensor range within Omron Sensing Products.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2EH-X3D2 2M |
Omron E2EH-X3D2 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M12 |
| Mounting type | Shielded |
| Sensing Distance | 3 mm |
| Setting Distance | 0 to 2.4 mm |
| Output configuration | DC 2-wire |
| Operation Mode | NC |
| Connection Method | Pre-wired 2 M Cable |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 12 × 12 × 1 mm |
| Response Frequency | 500 Hz |
| Power Supply Voltage | 12 to 24 VDC |
| Protection Circuit | Surge suppressor, Load short-circuit protection |
| Ambient Temperature Range | Operating: 0 to 100°C Storage: −25 to 70° (with no icing or condensation) |
| Degree of Protection | IEC IP67, DIN 40050-9 IP69K |
| Control Output | 3 to 100 mA |
| Indicators | Operation indicator (yellow) |
| Materials | Stainless steel (SUS316L), PBT, Heat-resistant PVC cable. |
| Weight | Approx. 80 g |
The Omron E2EH-X3D2 2M Proximity Sensor is an M12 shielded inductive model with a 3 mm sensing distance and a 0 to 2.4 mm setting range. Its DC 2-wire circuit operates with normally closed switching through a pre-wired 2 m cable and uses a 12 to 24 VDC supply. Response frequency is specified at 500 Hz, while ferrous metal is referenced through an iron 12 × 12 × 1 mm standard sensing object. Load current covers 3 to 100 mA, and surge suppression together with load short-circuit protection is provided.
For an Omron M12 proximity sensor requiring DC 2-wire NC operation, 3 mm sensing, and fixed cable connection in elevated-temperature conditions, the relevant model is the E2EH-X3D2. Operating temperature covers 0 to 100°C and storage extends from -25 to 70°C. IEC IP67 and DIN 40050-9 IP69K are specified, with SUS316L stainless steel, PBT, and heat-resistant PVC cable listed among the materials. Its compact shielded format also fits requirements for an Omron DC 2-wire proximity sensor, Omron 3 mm proximity sensor, and Omron high-temperature proximity sensor. For another M12 DC 2-wire model using an M12 connector, see E2EH-X3D1-M1G.
