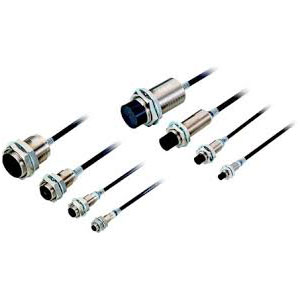

Omron E2EQ-X10D1-M1GJ 1M Proximity Sensor
Omron E2EQ-X10D1-M1GJ 1M is an M30 shielded inductive sensor with a 10 mm sensing distance, 0 to 8 mm setting range, and DC 2-wire NO operation. An M12 pre-wired standard connector with a 1 m cable provides connection, while the specified supply is 12 to 24 VDC and response frequency reaches 400 Hz. The E2EQ-X10D1-M1GJ 1M is part of the E2EQ Series, while related connection formats and sensing distances can be explored through the broader 10 mm DC 2-wire proximity sensor range included in the Omron Sensor Range.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2EQ-X10D1-M1GJ 1M |
Omron E2EQ-X10D1-M1GJ 1M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M30 |
| Mounting type | Shielded |
| Sensing Distance | 10 mm |
| Setting Distance | 0 to 8 mm |
| Output configuration | DC 2-wire |
| Operation Mode | NO |
| Connection Method | M12 Pre-wired Standard Connector 1 M Cable |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 30 × 30 × 1 mm |
| Response Frequency | 400 Hz |
| Power Supply Voltage | 12 to 24 VDC |
| Protection Circuit | Load short-circuit protection, Surge suppressor |
| Ambient Temperature Range | Operating/Storage: −25 to 70°C (with no icing or condensation) |
| Degree of Protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Control Output | 3 to 100 mA |
| Indicators | Operation indicator (red), Setting indicator (green) |
| Materials | Fluororesin coating (Base material: brass) , Fluororesin, Fluororesin coating (Base material: brass) , Zinc-plated iron. |
| Weight | Approx. 190 g |
The Omron E2EQ-X10D1-M1GJ 1M Proximity Sensor uses an M30 shielded inductive format with 10 mm sensing and a 0 to 8 mm setting range. Its DC 2-wire circuit provides normally open operation through an M12 pre-wired standard connector with a 1 m cable. Supply voltage is 12 to 24 VDC and response frequency is rated at 400 Hz. Ferrous metal is specified with an iron 30 × 30 × 1 mm standard object. Load current covers 3 to 100 mA, while load short-circuit protection and surge suppression are included.
For applications requiring an Omron M30 proximity sensor with DC 2-wire NO switching, 10 mm sensing, and an M12 cable connector, the specified model is the E2EQ-X10D1-M1GJ. Operating and storage temperatures cover -25 to 70°C, with IEC 60529 IP67 and an in-house oil-resistant standard stated. Fluororesin-coated brass, fluororesin, and zinc-plated iron are included in the material details. This specification also fits an Omron DC 2-wire proximity sensor, Omron 10 mm proximity sensor, and Omron M12 connector proximity sensor requirement. For a related M30 DC 2-wire NC version with 20 mm sensing and Smartclick connection, see E2EQ-X20D230-M1TGJ 0.3M.
