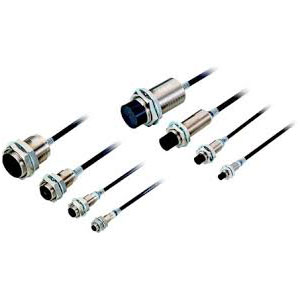

Omron E2EQ-X15B1D30 2M Proximity Sensor
Omron E2EQ-X15B1D30 2M features an M30 shielded inductive body with a 15 mm sensing distance, 0 to 12 mm setting range, and DC 3-wire PNP NO switching. Connection is provided through a fixed 2 m cable, with 10 to 30 VDC operating voltage and a 250 Hz response frequency. The E2EQ-X15B1D30 2M sits within the E2EQ Series, while alternative output arrangements are available across the wider 15 mm PNP proximity sensor range supplied through Omron Industrial Sensors for machine sensing.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2EQ-X15B1D30 2M |
Omron E2EQ-X15B1D30 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M30 |
| Mounting type | Shielded |
| Sensing Distance | 15 mm |
| Setting Distance | 0 to 12 mm |
| Output configuration | DC 3-wire PNP |
| Operation Mode | NO |
| Connection Method | Pre-wired 2 M Cable |
| Detectable Object | Ferrous metals |
| Standard Sensing Object | 45 × 45 × 1 mm |
| Response Frequency | 250 Hz |
| Power Supply Voltage | 10 to 30 VDC |
| Protection Circuit | Power supply reverse polarity protection, Surge suppressor, Output short-circuit protection, Output reverse polarity protection |
| Ambient Temperature Range | Operating/Storage: -40 to 85°C (with no icing or condensation) |
| Degree of Protection | IEC 60529:IP67, JIS C 0920 Annex 1: IP67G |
| Control Output | 1-output models: 10 to 30 VDC, Class 2, 200 mA max, 2-output models:10 to 30 VDC, Class 2, 100 mA max. |
| Indicators | In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and communication indicator (green, not lit) In the IO-Link communication mode (COM mode): Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals) |
| Materials | Fluororesin coating (Base material: brass), Fluorine resin, Fluororesin coating (Base material: brass), Zinc-plated iron, Vinyl chloride (PVC). |
| Weight | Approx. 240 g |
The Omron E2EQ-X15B1D30 2M Proximity Sensor has an M30 shielded inductive body with a 15 mm sensing distance and a 0 to 12 mm setting range. DC 3-wire PNP output operates in normally open mode through a pre-wired 2 m cable, with 10 to 30 VDC supply and a 250 Hz response frequency. Ferrous metals are specified with a 45 × 45 × 1 mm standard sensing object. The listed 1-output rating reaches 200 mA max. Supply reverse-polarity protection, surge suppression, output short-circuit protection, and output reverse-polarity protection are provided.
For an Omron M30 proximity sensor requiring 15 mm sensing, PNP NO switching, and direct two-metre wiring, the applicable model is the E2EQ-X15B1D30. Operating and storage temperatures extend from -40 to 85°C, while IEC 60529 IP67 and JIS C 0920 Annex 1 IP67G are stated. Material details include fluororesin-coated brass, fluorine resin, zinc-plated iron, and PVC. Its electrical format also matches specifications for an Omron PNP proximity sensor, Omron 15 mm proximity sensor, and Omron shielded proximity sensor. For another M30 E2EQ model with 15 mm sensing and PNP NO+NC output, see E2EQ-X15B3D30 2M.
