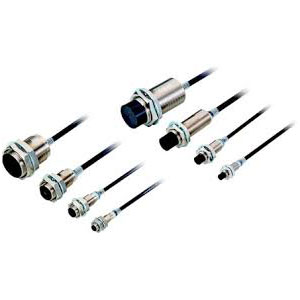

Omron E2EQ-X11D218-M1TGJ 0.3M Proximity Sensor
The Omron E2EQ-X11D218-M1TGJ 0.3M Proximity Sensor offers Inductive, M18, Shielded, 11 mm Sensing distance, DC 2-wire NC, M12 Pre-wired Smartclick Connector 0.3 M Cable, 10 to 30 VDC Power supply voltage. Manufactured by Omron under the Omron Proximity Sensors category, this model belongs to the Omron E2EQ Series.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2EQ-X11D218-M1TGJ 0.3M |
Omron E2EQ-X11D218-M1TGJ 0.3M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M18 |
| Mounting type | Shielded |
| Sensing Distance | 11 mm |
| Setting Distance | 0 to 8.8 mm |
| Output configuration | DC 2-wire |
| Operation Mode | NC |
| Connection Method | M12 Pre-wired Smartclick Connector 0.3 M Cable |
| Detectable Object | Ferrous metals |
| Standard Sensing Object | 33 × 33 × 1 mm |
| Response Frequency | 250 Hz |
| Power Supply Voltage | 10 to 30 VDC |
| Protection Circuit | Surge suppressor, Load short-circuit protection |
| Ambient Temperature Range | Operating: -25 to 70°C, Storage: -40 to 85°C (with no icing or condensation) |
| Degree of Protection | IP67 (IEC 60529) and IP67G |
| Control Output | 3 to 100 mA |
| Indicators | Operation indicator (orange) |
| Materials | Fluororesin coating (Base material: brass), Fluorine resin, Fluororesin coating (Base material: brass), Zinc-plated iron, Vinyl chloride (PVC). |
| Weight | Approx. 90 g |
The Omron E2EQ-X11D218-M1TGJ 0.3M is often compared with other models in the E2EQ group due to shared installation characteristics and consistent sensing behavior. This ensures compatibility when matching size, sensing distance, wiring style, output logic, or connector format. The E2EQ-X11D218-M1TGJ 0.3M integrates smoothly into machinery, fixtures, conveyors, and automation systems requiring dependable detection from an Omron Proximity Sensor.
