Omron E2EH-X7D1-T 2M Proximity Sensor

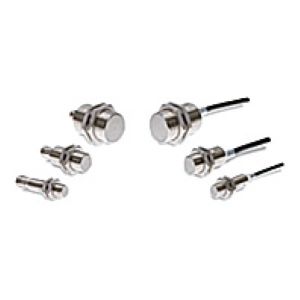

Omron E2EH-X7D1-T 2M is an M18 shielded high-temperature inductive proximity sensor with a 7 mm sensing distance and a 0 to 5.6 mm setting distance. It uses a DC 2-wire NO output through a pre-wired 2 m cable and operates from 12 to 24 VDC. Ferrous metal is the specified detectable object, paired with an iron 21 × 21 × 1 mm standard sensing object. Response frequency is 300 Hz, and control output is rated from 3 to 100 mA. Red and yellow LEDs provide operation and setting indication, while surge suppression and load short-circuit protection are specified. The E2EH-X7D1-T 2M is included among M18 heat-resistant proximity sensors from Omron industrial sensor solutions.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2EH-X7D1-T 2M |
Omron E2EH-X7D1-T 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M18 |
| Mounting type | Shielded |
| Sensing Distance | 7 mm |
| Setting Distance | 0 to 5.6 mm |
| Output configuration | DC 2-wire |
| Operation Mode | NO |
| Connection Method | Pre-wired 2 M Cable |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron 21 × 21 × 1 mm |
| Response Frequency | 300 Hz |
| Power Supply Voltage | 12 to 24 VDC |
| Protection Circuit | Surge suppressor, Load short-circuit protection |
| Ambient Temperature Range | Operating: 0 to 100°C Storage: −25 to 70° (with no icing or condensation) |
| Degree of Protection | IEC IP67, DIN 40050-9 IP69K |
| Control Output | 3 to 100 mA |
| Indicators | Operation indicator (red), Setting indicator (yellow) |
| Materials | Stainless steel (SUS316L, PBT, Heat-resistant PVC cable . |
| Weight | Approx. 145 g |
The Omron E2EH-X7D1-T 2M Proximity Sensor uses an M18 shielded inductive sensing body with a 7 mm sensing distance and a 0 to 5.6 mm setting distance. It provides a DC 2-wire NO output through a pre-wired 2 m cable and operates from 12 to 24 VDC. Ferrous metal is the specified detectable object, paired with an iron 21 × 21 × 1 mm standard sensing object. Response frequency is 300 Hz, while control output is rated from 3 to 100 mA. Red and yellow indicators provide operation and setting status. Surge suppression and load short-circuit protection are specified for the electrical circuit, with SUS316L stainless steel used in the sensor construction.
Operating conditions for the E2EH-X7D1-T extend from 0 to 100°C, while storage covers -25 to 70°C without icing or condensation. IEC IP67 and DIN 40050-9 IP69K are specified for environmental protection. PBT and heat-resistant PVC cable are also included among the listed materials. The shielded M18 construction combines a 7 mm sensing range with DC 2-wire NO operation for elevated-temperature machine environments. The fixed cable supports direct connection to control wiring. For another E2EH model with the same M18 size and 7 mm sensing range but DC 3-wire PNP operation through an M12 connector, see E2EH-X7B1-M1.
