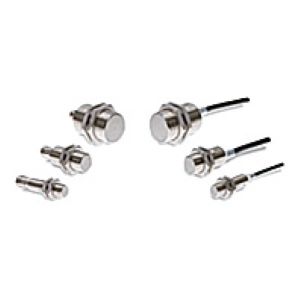

Omron E2EH-X7B1-M1 Proximity Sensor
Omron E2EH-X7B1-M1 is an M18 shielded inductive proximity sensor with a 7 mm sensing distance and a 0 to 5.6 mm setting distance. It provides a DC 3-wire PNP output with NO operation through an M12 connector and operates from 12 to 24 VDC. Ferrous metal is the specified detection target, with an iron 21 × 21 × 1 mm standard sensing object. Response frequency is 300 Hz, while control output is rated 100 mA max. The sensor supports operation up to 100°C and carries IP67 and IP69K protection ratings. The E2EH-X7B1-M1 is included among high temperature proximity sensors from Omron industrial sensing products.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2EH-X7B1-M1 |
Omron E2EH-X7B1-M1 Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M18 |
| Mounting type | Shielded |
| Sensing Distance | 7 mm |
| Setting Distance | 0 to 5.6 mm |
| Output configuration | DC 3-wire PNP |
| Operation Mode | NO |
| Connection Method | M12 Connector |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron 21 × 21 × 1 mm |
| Response Frequency | 300 Hz |
| Power Supply Voltage | 12 to 24 VDC |
| Protection Circuit | Power supply reverse polarity protection, Surge suppressor, Load short-circuit protection, Reversed output polarity protection |
| Ambient Temperature Range | Operating: 0 to 100°C Storage: −25 to 70°C (with no icing or condensation) |
| Degree of Protection | IEC IP67, DIN 40050-9 IP69K |
| Control Output | 100 mA max. |
| Indicators | Operation indicator (yellow) |
| Materials | Stainless steel (SUS316L), PBT, Heat-resistant PVC cable. |
| Weight | Approx. 55 g |
The Omron E2EH-X7B1-M1 Proximity Sensor uses an M18 shielded inductive sensing body with a 7 mm sensing distance and a 0 to 5.6 mm setting distance. It provides a DC 3-wire PNP output with NO operation through an M12 connector and operates from 12 to 24 VDC. Ferrous metal is the specified detectable object, with an iron 21 × 21 × 1 mm standard sensing object. Response frequency is 300 Hz, while control output is rated 100 mA max. A yellow LED provides operation indication. Power-supply reverse-polarity protection, surge suppression, load short-circuit protection, and reversed output-polarity protection are specified for the sensor circuit.
Operating conditions for the E2EH-X7B1-M1 extend from 0 to 100°C, while storage covers -25 to 70°C without icing or condensation. IEC IP67 and DIN 40050-9 IP69K are specified for environmental protection. SUS316L stainless steel, PBT, and heat-resistant PVC cable material are listed among the construction details. The shielded M18 format combines a 7 mm sensing range with PNP NO switching and detachable M12 connectivity. Its high-temperature capability supports sensing positions exposed to elevated operating conditions. Ferrous metal remains the specified target. For another high-temperature E2EH model with a larger M30 body, 12 mm sensing distance, NC operation, and a pre-wired 2 m cable, see E2EH-X12B2 2M.
