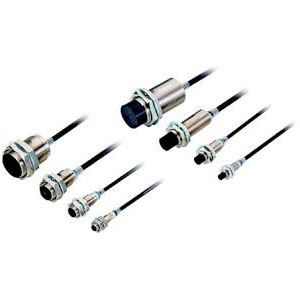

Omron E2EQ-X10D1 2M Proximity Sensor
Omron E2EQ-X10D1 2M is an M30 shielded inductive proximity sensor with a 10 mm sensing distance and a 0 to 8 mm setting distance. It uses a DC 2-wire NO output through a pre-wired 2 m cable and operates from 12 to 24 VDC. Ferrous metal is the specified detectable object, with an iron 30 × 30 × 1 mm standard sensing object. Response frequency is 400 Hz, while control output is rated from 3 to 100 mA. Red and green indicators show operation and setting status. The E2EQ-X10D1 2M is included among M30 inductive proximity sensors from Omron industrial sensing products.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2EQ-X10D1 2M |
Omron E2EQ-X10D1 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M30 |
| Mounting type | Shielded |
| Sensing Distance | 10 mm |
| Setting Distance | 0 to 8 mm |
| Output configuration | DC 2-wire |
| Operation Mode | NO |
| Connection Method | Pre-wired 2 M Cable |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 30 × 30 × 1 mm |
| Response Frequency | 400 Hz |
| Power Supply Voltage | 12 to 24 VDC |
| Protection Circuit | Load short-circuit protection, Surge suppressor |
| Ambient Temperature Range | Operating/Storage: −25 to 70°C (with no icing or condensation) |
| Degree of Protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Control Output | 3 to 100 mA |
| Indicators | Operation indicator (red), Setting indicator (green) |
| Materials | Fluororesin coating (Base material: brass) , Fluororesin, Fluororesin coating (Base material: brass) , Zinc-plated iron. |
| Weight | Approx. 220 g |
The Omron E2EQ-X10D1 2M Proximity Sensor uses an M30 shielded inductive sensing body with a 10 mm sensing distance and a 0 to 8 mm setting distance. It provides a DC 2-wire NO output through a pre-wired 2 m cable and operates from 12 to 24 VDC. Ferrous metal is the specified detectable object, paired with an iron 30 × 30 × 1 mm standard sensing object. Response frequency is 400 Hz, while control output is rated from 3 to 100 mA. Red and green indicators provide operation and setting status, while load short-circuit protection and surge suppression are specified. Fluororesin-coated brass and zinc-plated iron are listed among the construction materials.
Operating and storage conditions for the E2EQ-X10D1 extend from -25 to 70°C without icing or condensation. IEC 60529 IP67 and an in-house oil-resistant rating are specified. The shielded M30 construction combines the stated 10 mm sensing range with DC 2-wire NO operation and direct 2 m cable wiring. Fluororesin coating is used on the listed brass base material, supporting the construction requirements of this E2EQ configuration. The 400 Hz response frequency supports target detection within the stated operating range. For another E2EQ model with an M12 body, 2 mm sensing distance, and DC 3-wire PNP NO+NC output, see E2EQ-X2B3D12 2M.
