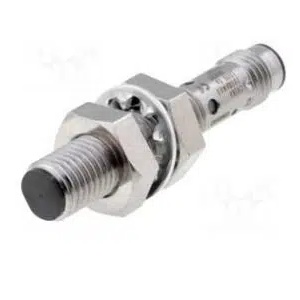

Omron E2B-S08KS02-MC-B1 Proximity Sensor
The Omron E2B-S08KS02-MC-B1 Proximity Sensor offers Inductive, M8, Shielded, 2 mm Sensing distance, Short body, PNP NO Output, M8 Connector (3-pin), 10 to 30 VDC Power supply voltage. Manufactured by Omron under the Omron Proximity Sensors category, this model belongs to the Omron E2B Series.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2B-S08KS02-MC-B1 |
Omron E2B-S08KS02-MC-B1 Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M8 |
| Mounting | Shielded |
| Sensing Distance | 2 mm |
| Setting Distance | 0 to 1.6 mm |
| Body Length | Short body |
| Output Configuration | PNP |
| Operation Mode | NO |
| Connection | M8 Connector (3-pin) |
| Power Supply Voltage | 10 to 30 VDC |
| Body Material | Stainless steel |
| Standard Target | 8 Γ 8 Γ 1 mm |
| Differential Travel | 10% max. of sensing distance |
| Detectable Object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Response Frequency | 1,500 Hz |
| Current Consumption | 10 mA max |
| Indicator | Operation indicator (Yellow LED) |
| Protection Circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Short-circuit protection |
| Ambient Temperature Range | Operation and storage : -25 to 70ΒΊC (with no icing or condensation) |
| Ambient Humidity Range | Operating: 35% to 95%, Storage: 35% to 95% |
| Insulation Resistance | Β±10% max. of sensing distance at 23ΒΊC within temperature range of -10 to 55ΒΊC Β±15% max. of sensing distance at 23ΒΊC within temperature range of -25 to 70ΒΊC |
| Dielectric Strength | 50 MΞ© min. (at 500 VDC) between current carry parts and case |
| Vibration Resistance | 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y and Z directions |
| Shock Resistance | 500 m/s2, 10 times each in X, Y and Z directions |
| Voltage Influence | Β±1% max. of sensing distance in 24 V Β±15% |
| Degree Of Protection | IP67 |
| Weight | Approx. 20 g |
The Omron E2B-S08KS02-MC-B1 is often compared with other models in the E2B Proximity Sensor group due to shared installation characteristics and consistent sensing behavior. Engineers frequently evaluate Omron E2B-S08LS02-MC-B1 (M8, 2 mm Sensing Distance, PNP, NO, M8 Connector (3-pin)), Omron E2B-M18KS08-M1-B1 (M18, 8 mm Sensing Distance, PNP, NO, M12 connector), and Omron E2B-M12KS02-WP-B1 2M (M12, 2 mm Sensing Distance, PNP, NO, Pre Wired Cable Length 2M) when selecting suitable alternatives. This ensures compatibility when matching size, sensing distance, wiring style, output logic, or connector format. The E2B-S08KS02-MC-B1 integrates smoothly into machinery, fixtures, conveyors, and automation systems requiring dependable detection from an Omron Proximity Sensor.
