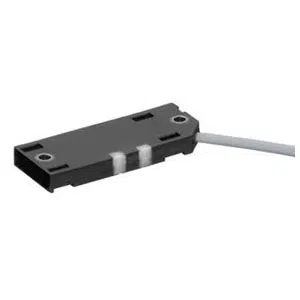

Leuze LCS-1Q54P-F10NNO-K020P Proximity Sensor
Leuze LCS-1Q54P-F10NNO-K020P proximity sensor delivers 1β10 mm sensing distance, PNP NO output, 10β30 V DC supply voltage embedded installation. This LCS-1Q54P-F10NNO-K020P Leuze 100 HZ Frequency Sensor from Leuze is a Proximity Sensor in the LCS-1 Series. It supports 100 Hz switching frequency, adjustable sensitivity via multiturn potentiometer, PUR cable connection, cubic housing, and IP67 protection.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1Q54P-F10NNO-K020P |
Leuze LCS-1Q54P-F10NNO-K020P Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 1 ... 10 mm |
| Assured switching distance | - |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PUR,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cubic |
| Thread size | - |
| Dimension (Γ x L) | 54 mm x 20.3 mm x 5.5 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (11 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
| Weight | 40 g |
The LCS-1Q54P-F10NNO-K020P Leuze 100 HZ Frequency Sensor is a capacitive proximity sensor designed for industrial automation systems. The LCS-1Q54P-F10NNO-K020P operates with a 1β10 mm sensing distance, PNP normally open output, 10β30 V DC supply, and 100 Hz switching frequency. It belongs to the LCS series and is used where stable, repeatable capacitive detection is required in embedded installations.
This proximity sensor is commonly applied in conveyors, packaging lines, automated assembly stations, and material handling equipment. Its cubic design allows secure embedded mounting, while adjustable sensitivity supports consistent detection across different materials. The defined switching behavior and frequency enable reliable signal processing in PLC-controlled automation environments.
The Leuze LCS-1Q54P-F10NNO-K020P proximity sensor offers predictable electrical performance and mechanical stability for industrial use. Clear sensing parameters, adjustable switching distance, and IP67 protection support dependable operation under demanding conditions. As part of the Leuze LCS-series, this model is suitable for applications requiring controlled capacitive proximity sensing with defined frequency characteristics.
