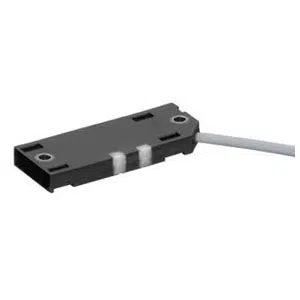

LCS-1Q54P-F10PNO-K020P: 50135743 -Leuze 10mm Sensing Capacitive Sensor
Technical Specifications of Leuze LCS-1Q54P-F10PNO-K020P 50135743:
| Spec | Value |
|---|---|
| Design | Cubic |
| Sensing Distance | 1 ... 10 mm |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
Leuze 10mm Sensing Capacitive Sensor LCS-1Q54P-F10PNO-K020P, 50135743 Technical Specifications:
| Specification | Value |
|---|---|
| Series | LCS-1 |
| Sensing Distance | 1 ... 10 mm |
| Assured switching distance | - |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PUR,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cubic |
| Thread size | - |
| Dimension (Ø x L) | 54 mm x 20.3 mm x 5.5 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (11 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | 40 g |
IndMALL Automation offers Leuze 10mm Sensing Capacitive Sensor LCS-1Q54P-F10PNO-K020P part no: 50135743with the best rates. Product Technical Specifications of LCS-1Q54P-F10PNO-K020P, 50135743 are LCS-1 series, 1 ... 10 mm sensing distance, - switching distance, 10 ... 30 V, DC power supply, 100 mA operating current, 1 Piece(s) digital switching output, Transistor, PNP, NO (normally open) output, 100 Hz switching frequency, PUR,Cable 2,000 mm Length, 3 -wire, Cubic, 54 mm x 20.3 mm x 5.5 mm dimension, Embedded, Plastic, 2 Piece(s) LEDs, Multiturn potentiometer (11 turns) operational controls, IP 67 degree of protection. It's Time to get a Quote for your requirement of Leuze 10mm Sensing Capacitive Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
