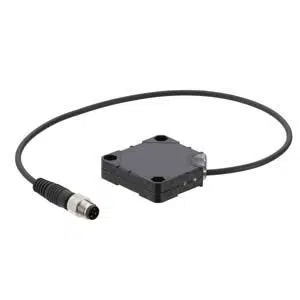

LCS-1Q40P-F20BNP-K020P: 50135742 - Leuze 40mm NC/NO Capacitive Sensor
Technical Specifications of Leuze LCS-1Q40P-F20BNP-K020P 50135742:
| Spec | Value |
|---|---|
| Design | Cubic |
| Sensing Distance | 1 ... 20 mm |
| Switching Output | Transistor, Push-pull |
| Switching Principle | Normally closed contact (NC)/normally open contact (NO) |
Leuze 40mm NC/NO Capacitive Sensor LCS-1Q40P-F20BNP-K020P, 50135742 Technical Specifications:
| Specification | Value |
|---|---|
| Series | LCS-1 |
| Sensing Distance | 1 ... 20 mm |
| Assured switching distance | 20 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, Push-pull |
| Switching principle | Normally closed contact (NC)/normally open contact (NO) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PUR,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cubic |
| Thread size | - |
| Dimension (Ø x L) | 40 mm x 40 mm x 10 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | Oparation:-5 ... 85 °C Storage:-25 ... 85 °C |
| Degree of protection | IP 67 |
| Weight | 48 g |
Give Us a Call for Leuze 40mm NC/NO Capacitive Sensor LCS-1Q40P-F20BNP-K020P part no: 50135742 at affordable rates. Specifications Overview for LCS-1Q40P-F20BNP-K020P, 50135742 includes LCS-1 series, 1 ... 20 mm sensing distance, 20 mm switching distance, 10 ... 30 V, DC power supply, 100 mA operating current, 1 Piece(s) digital switching output, Transistor, Push-pull, Normally closed contact (NC)/normally open contact (NO) output, 100 Hz switching frequency, PUR,Cable 2,000 mm Length, 3 -wire, Cubic, 40 mm x 40 mm x 10 mm dimension, Embedded, Plastic, 2 Piece(s) LEDs, Multiturn potentiometer (20 turns) operational controls, IP 67 degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze 40mm NC/NO Capacitive Sensor. We're committed to offering more favorable pricing and more responsive support than other Distributors.
