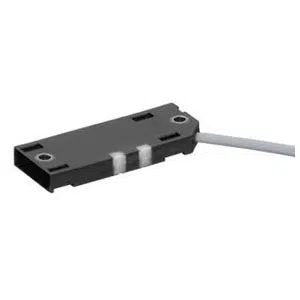

Leuze LCS-1Q54P-F10PNC-K020P Proximity Sensor
Leuze LCS-1Q54P-F10PNC-K020P proximity sensor provides 1–10 mm sensing distance, PNP NC output, and 10–30 V DC supply voltage operation. This LCS-1Q54P-F10PNC-K020P Leuze 54mm Cubic Capacitive Sensor from Leuze is categorized as a Proximity Sensor within the LCS-1 Series. It supports embedded installation, adjustable sensitivity via multiturn potentiometer, 100 Hz switching frequency, PUR cable connection, and IP67 protection.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1Q54P-F10PNC-K020P |
Leuze LCS-1Q54P-F10PNC-K020P Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 1 ... 10 mm |
| Assured switching distance | - |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PUR,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cubic |
| Thread size | - |
| Dimension (Ø x L) | 54 mm x 20.3 mm x 5.5 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (11 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | 40 g |
The LCS-1Q54P-F10PNC-K020P Leuze 54mm Cubic Capacitive Sensor is a proximity sensor designed for controlled industrial automation environments. The LCS-1Q54P-F10PNC-K020P operates with a 1–10 mm sensing distance, PNP normally closed output, 10–30 V DC supply, and 100 mA rated operating current. It belongs to the LCS series and supports embedded capacitive detection in compact machine layouts.
This proximity sensor is commonly applied in conveyors, packaging machinery, automated assembly systems, and material handling equipment. Its cubic housing allows stable embedded mounting, while adjustable sensitivity ensures reliable detection across varying materials. The PNP NC output enables predictable signal behavior in PLC-based industrial control systems.
The Leuze LCS-1Q54P-F10PNC-K020P proximity sensor is defined by stable electrical performance and mechanical consistency. Clear sensing limits, switching characteristics, and IP67 protection support dependable operation in industrial conditions. As part of the Leuze LCS-series, this model is suitable for applications requiring precise capacitive proximity sensing with defined installation parameters.
