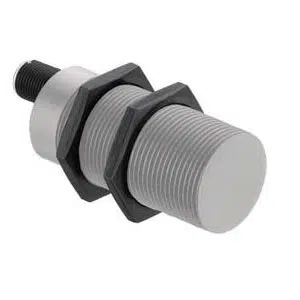

Leuze LCS-1M30P-F15NNO-M12 Proximity Sensor
Leuze LCS-1M30P-F15NNO-M12 proximity sensor delivers 2β15 mm sensing distance with NPN NO output at 10β30 V DC supply operation. This Leuze M30 1.5mm Capacitive Sensor LCS-1M30P-F15NNO-M12 from Leuze belongs to the Proximity Sensor category and the LCS-1 Series. It supports embedded installation, cylindrical M30 housing, adjustable sensitivity, and IP67 protection for industrial environments.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M30P-F15NNO-M12 |
Leuze LCS-1M30P-F15NNO-M12 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 2 ... 15 mm |
| Assured switching distance | 15 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 4 -pin |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Γ x L) | 30 mm x 79 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT)/polyamide (PA 12) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 Β°C |
| Degree of protection | IP 67 |
| Weight | 40 g |
The Leuze M30 1.5mm Capacitive Sensor LCS-1M30P-F15NNO-M12 is a proximity sensor designed for consistent object detection in industrial automation. The LCS-1M30P-F15NNO-M12 operates with a 2β15 mm sensing distance, NPN normally open output, 100 mA rated operating current, and 10β30 V DC supply. It is part of the LCS series and supports embedded mounting in machinery and control systems.
This proximity sensor is commonly used in conveyors, packaging lines, automated assembly stations, and material handling equipment. The M30 threaded cylindrical design enables stable mechanical mounting, while the M12 connector ensures reliable electrical connection. Adjustable sensitivity supports stable detection across varying materials and operating conditions.
The Leuze LCS-1M30P-F15NNO-M12 proximity sensor provides defined electrical behavior and environmental protection for continuous use. Its sensing range, switching characteristics, and housing design support predictable integration. As a Leuze LCS-series device, this model is suitable for industrial automation applications requiring dependable capacitive sensing.
