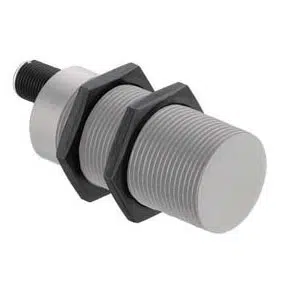

Leuze LCS-1M30P-F15PNO-M12 Proximity Sensor
Leuze LCS-1M30P-F15PNO-M12 proximity sensor offers 2–15 mm sensing distance, PNP NO output, and 10–30 V DC supply operation reliability. This Leuze M30 Transistor Capacitive Sensor LCS-1M30P-F15PNO-M12 from Leuze belongs to the Proximity Sensor category and the LCS-1 Series. It features an embedded M30 cylindrical design, 4-pin M12 connector, adjustable sensitivity, and IP67 protection for industrial automation environments.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M30P-F15PNO-M12 |
Leuze LCS-1M30P-F15PNO-M12 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 2 ... 15 mm |
| Assured switching distance | 15 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 4 -pin |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 79 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT)/polyamide (PA 12) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 °C |
| Degree of protection | IP 67 |
| Weight | 40 g |
The Leuze M30 Transistor Capacitive Sensor LCS-1M30P-F15PNO-M12 is a proximity sensor designed for non-contact object detection in industrial automation systems. The LCS-1M30P-F15PNO-M12 operates with a 2–15 mm sensing distance, PNP normally open output, 100 mA rated operating current, and 10–30 V DC supply. It belongs to the LCS series and supports embedded installation in machinery and control panels.
This proximity sensor is commonly used in conveyors, packaging machines, automated assembly lines, and material handling systems. The cylindrical M30 housing allows secure mounting, while the M12 connector ensures stable electrical connections. Adjustable sensitivity supports reliable detection across different materials, enabling consistent switching behavior in automated processes.
The Leuze LCS-1M30P-F15PNO-M12 proximity sensor combines defined electrical specifications with durable construction for continuous industrial use. Its sensing range, switching characteristics, and environmental protection enable predictable system integration. As part of the Leuze LCS family, this model is suitable for long-term operation in demanding industrial automation applications.
