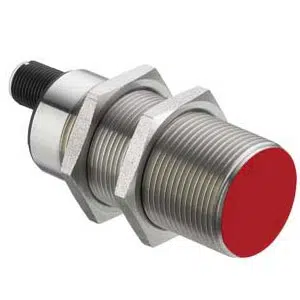

Leuze LCS-1M30M-F15NNC-K020P Proximity Sensor
Leuze LCS-1M30M-F15NNC-K020P proximity sensor provides 2–15 mm sensing distance with NPN NC output and 10–30 V DC supply operation. This Leuze M30 Embedded Capacitive Sensor LCS-1M30M-F15NNC-K020P from Leuze is part of the Proximity Sensor range and the LCS-1 Series. It features an embedded stainless steel M30 housing, 3-wire PUR cable, adjustable sensitivity, and IP67 protection for industrial environments.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M30M-F15NNC-K020P |
Leuze LCS-1M30M-F15NNC-K020P Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 2 ... 15 mm |
| Assured switching distance | 15 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PUR,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 66.5 mm |
| Type of installation | Embedded |
| Housing material | Metal, Stainless steel |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 °C |
| Degree of protection | IP 67 |
| Weight | 156 g |
The Leuze M30 Embedded Capacitive Sensor LCS-1M30M-F15NNC-K020P is a proximity sensor designed for precise non-contact detection in industrial automation systems. The LCS-1M30M-F15NNC-K020P operates with a 2–15 mm sensing distance, NPN normally closed switching, 100 mA rated operating current, and 10–30 V DC supply. It belongs to the LCS series and supports embedded installation in machinery and production equipment.
This proximity sensor is commonly applied in conveyors, packaging lines, automated assembly stations, and material handling systems. The stainless steel cylindrical housing provides mechanical stability, while the fixed PUR cable ensures reliable signal transmission. Adjustable sensitivity allows consistent detection across varying materials, supporting stable and repeatable automation processes.
The Leuze LCS-1M30M-F15NNC-K020P proximity sensor combines defined electrical characteristics with durable construction for continuous industrial use. Its sensing range, switching behavior, and environmental protection support predictable integration into control systems. As part of the Leuze LCS family, this model is suitable for long-term operation in demanding industrial automation applications.
