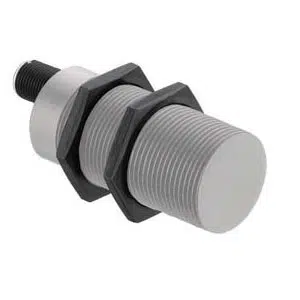

Leuze LCS-1M30P-F15PNC-M12 Proximity Sensor
Leuze LCS-1M30P-F15PNC-M12 proximity sensor provides 2–15 mm sensing distance with PNP NC output at 10–30 V DC supply operation. This Leuze 79mm Length Capacitive Sensor LCS-1M30P-F15PNC-M12 from Leuze belongs to the Proximity Sensor range and the LCS-1 Series. It features an embedded M30 cylindrical housing, 79 mm length, adjustable sensitivity, and IP67 protection for industrial automation use.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M30P-F15PNC-M12 |
Leuze LCS-1M30P-F15PNC-M12 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 2 ... 15 mm |
| Assured switching distance | 15 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 4 -pin |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 79 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT)/polyamide (PA 12) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 °C |
| Degree of protection | IP 67 |
| Weight | 40 g |
The Leuze 79mm Length Capacitive Sensor LCS-1M30P-F15PNC-M12 is a proximity sensor engineered for non-contact detection in industrial automation systems. The LCS-1M30P-F15PNC-M12 operates with a 2–15 mm sensing distance, PNP normally closed output, 100 mA rated operating current, and 10–30 V DC supply. It is part of the LCS series and supports embedded mounting in control panels and machinery.
This proximity sensor is used in conveyors, packaging equipment, automated assembly lines, and material handling systems. The M30 threaded cylindrical design enables stable installation, while the M12 connector supports reliable signal transmission. Adjustable sensitivity allows consistent detection across varying materials and operating conditions.
The Leuze LCS-1M30P-F15PNC-M12 proximity sensor combines defined electrical characteristics with a compact 79 mm body for dependable operation. Its sensing performance, switching behavior, and environmental protection support predictable integration. As a Leuze LCS-series device, this model is suited for continuous industrial automation applications.
