Leuze Ultrasonic Sensor
IGSU14E/LWT.3-M1
Brand Leuze Electronics
Model Number IGSU14E/LWT.3-M12
Part Number 50142870
Sensor type Ultrasonic Forked Sensor
Leuze IGSU14E/LWT.3-M12 Ultrasonic Sensor Technical Features:
The Leuze IGSU14E LWT 3 M12 model is an ultrasonic forked sensor belonging to the GS 14 series and has a part number 50142870. Its label identification system is fork-type and has a label width of 4 mm and a label gap of 2 mm. The sensor uses a Connector M12 and requires a supply voltage ranging from 18 to 30V DC.
| Part Number | 50142870 |
| Series | 14 |
| Principle of Physics | Ultrasonics |
| Application | Detection of non-transparent labels Detection of transparent labels |
| Label width, min. | 4 mm |
| Label gap, min. | 2 mm |
| Medium | Transparent and not transparent |
| Special version | ALC function (tracking) Manual fine-tuning of the switching threshold Teach input Warning output easyTeach function |
| Supply voltage UB | 18 … 30 V DC |
| Open-circuit current | 0 … 60 mA, Typical value |
| Number of teach inputs | 1 Piece(s) |
| Type | Teach input |
| Voltage type | DC |
| Switching voltage | high: ≥9V low: ≤ 2 V |
| Input resistance | 15,000 Ω |
| Active switching state | High |
| Number of digital switching outputs | 2 Piece(s) |
| Type | Digital switching output |
| Voltage type | DC |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Load capacity | 0.01 µF |
| Switching element | Transistor, Push-pull |
| Switching(Output 1) principle | IO-Link / PNP light switching (switching in the gap), NPN dark switching (switching on the label) |
| Switching(Output 2) principle | active low (normal operation high, event case low) |
| Switching frequency | 2,000 Hz |
| Response time | 0.2 ms |
| Readiness delay | 300 ms |
| Max. Bandgeschwindigkeit beim Teach-In | 50 m/min |
| Type | IO-Link |
| COM mode | COM3 |
| Profile | Smart sensor profile |
| Min. cycle time | COM3 = 0.5 ms |
| Frame type | 2.5 |
| Specification | V1.1 |
| Device ID | 2510 |
| SIO-mode support | Yes |
| Number of connections | 1 Piece(s) |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Plug outlet | Horizontal (parallel to belt movement) |
| Design | Fork |
| Mouth width | 4 mm |
| Mouth depth | 80 mm |
| Dimension (W x H x L) | 22 mm x 46.9 mm x 96 mm |
| Housing material | Metal |
| Metal housing | Diecast zinc, galvanic nickel coating |
| Net weight | 270 g |
| Housing color | Silver |
| Type of fastening | Mounting thread Through-hole mounting |
| Type of display | LED |
| Number of LEDs | 4 Piece(s) |
| Operational controls | Control buttons |
| The function of the operational control | Dynamic teach on label carrier and label |
| Ambient temperature, operation | 0 … 60 °C |
| Ambient temperature, storage | -40 … 70 °C |
| Degree of protection | IP 65 |
Product Documentation: IGSU14E/LWT.3-M12
Related Products: IGSU14E/LWT.3-M12
IGS 63B/6.3,200-S12 – 5018014
Label Gap Sensor, Model No: IGS 63B/6.3,200-S12, Part Number: 50128014, Series: Fork type GS 63, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 10 to 30 VDC, Connection: Cable with Connector, Cable length: 200 mm, Thread size: M12, Number of pins: 5-pin.
GS 63B/6D-S8 – 50128010
Label Gap Sensor, Model No: GS 63B/6D-S8, Part Number: 50128010, Series: Fork type GS 63, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 10 to 30 VDC, Connection: Connector type, Thread size: M8, Number of pins: 4-pin.
IGSU14E/1WT.3-M12V – 50142873
Leuze Label Sensor, Model No: IGSU14E/1WT.3-M12V, Part Number: 50142873, Series: Fork type GS 14, Principle of physics: Ultrasonic Fork Sensor, Label width: 4 mm, Label gap: 2 mm, Supply voltage: 18 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.
GSX14E/1WT.3-M12 – 50142867
Label Gap Sensor, Model No: GSX14E/1WT.3-M12, Part Number: 50142867, Series: Fork type GS 14, Principle of physics: Optical and Ultrasonic Sensor, Label width: 4 mm Ultrasonics / 2 mm Optical, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 18 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.
GS 61/6D-S8.3 – 50110762
Leuze Gap Sensor, Model No: GS 61/6D-S8.3, Part Number: 50110762, Series: Fork type GS 61, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Connector type, Thread size: M8, Number of pins: 3-pin.
IGSU 14DN/6D.3-S12 – 50143533
Label Gap Sensor, Model No: IGSU 14DN/6D.3-S12, Part Number: 50143533, Series: Fork type GS 14, Principle of physics: Ultrasonic Fork Sensor, Label width: 10 mm, Label gap: 2 mm, Supply voltage: 12 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.
GS 61/6.2 – 50110767
Leuze Label Gap Sensor, Model No: GS 61/6.2, Part Number: 50110767, Series: Fork type GS 61, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Cable type, Cable length: 2000 mm, Number of conductors: 5 -wire.
GS 63B/6,200-S12 – 50128002
Label Gap Sensor, Model No: GS 63B/6,200-S12, Part Number: 50128002, Series: Fork type GS 63, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 10 to 30 VDC, Connection: Cable with Connector, Cable length: 200 mm, Thread size: M12, Number of pins: 5-pin.

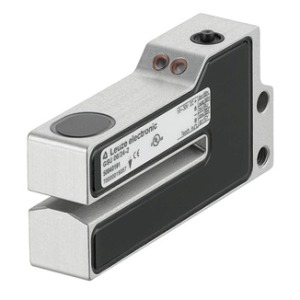

GSU 06/24-2 – 50040191
Label Gap Sensor, Model No: GSU 06/24-2, Part Number: 50040191, Series: Fork type GSU 6, Principle of physics: Ultrasonic Fork Sensor, Label width: 10 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Connection: Cable type, Cable length: 2000 mm, Thread size: M12, Number of conductors: 5 -wire.
GSX14E/LWT.3-M12 – 50142865
Label Gap Sensor, Model No: GSX14E/LWT.3-M12, Part Number: 50142865, Series: Fork type GS 14, Principle of physics: Optical and Ultrasonic Sensor, Label width: 4 mm Ultrasonics / 2 mm Optical, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 18 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.
The Leuze IGSU14E/LWT.3-M12 is an ultrasonic fork sensor from the GS 14 series with part number 50142870. Its label detection system is fork-type, suitable for the detection of transparent and the detection of non-transparent labels with a minimum label width of 4 mm and a label gap of 2 mm. It features an ALC function for tracking, manual fine-tuning of the switching threshold, teach input, and easyTeach function.
The IGSU14E-LWT.3-M12 sensor requires a supply voltage of 18-30 V DC and utilizes a connector M12. With one teach input and two digital switching outputs, it can handle a maximum switching current of 100 mA. It’s switching (Output 1) principle uses IO-Link/PNP light switching for gap detection and NPN dark switching for label detection. Meanwhile, it’s switching (Output 2) principle is actively low for event cases. The sensor has a response time of 0.2 ms and a readiness delay of 300 ms.
The Leuze ultrasonic fork sensor IGSU14E LWT 3 M12 has a mouth width of 4 mm and a depth of 80 mm. It has dimensions of 22 mm x 46.9 mm x 96 mm and a net weight of 270 g. It is made of diecast zinc with a galvanic nickel coating and has a degree of protection IP 65. The sensor operates within the temperature range of 0-60°C and can be fastened through a mounting thread or through-hole mounting. It features four LED lights and control buttons for dynamic teach on label carrier and label.
If you are looking for the best prices for GS 14 series sensors, you can find them at IndMALL Automation. Purchase the Leuze IGSU14E-LWT.3-M12V sensor now and take advantage of the best deals available.
