Leuze Ultrasonic Fork Sensor
IGSU14E/LWT.3-M12V
Brand Leuze Electronics
Model Number IGSU14E/LWT.3-M12V
Part Number 50142871
Sensor type Ultrasonic Fork Sensor
Leuze IGSU14E/LWT.3-M12V Ultrasonic Sensor Technical Features:
The Leuze IGSU14E LWT 3 M12V model is an ultrasonic fork sensor belonging to the GS 14 series and has a part number 50142871. Its label identification system is fork-type and has a label width of 4 mm and a label gap of 2 mm. The sensor uses a Connector M12 and requires a supply voltage ranging from 18 to 30V DC.
| Part Number | 50142871 |
| Series | 14 |
| Principle of Physics | Ultrasonics |
| Application | Detection of non-transparent labels Detection of transparent labels |
| Label width, min. | 4 mm |
| Label gap, min. | 2 mm |
| Medium | Transparent and not transparent |
| Special version | ALC function (tracking) Manual fine-tuning of the switching threshold Teach input Warning output easyTeach function |
| Supply voltage UB | 18 … 30 V DC |
| Open-circuit current | 0 … 60 mA, Typical value |
| Number of teach inputs | 1 Piece(s) |
| Type | Teach input |
| Voltage type | DC |
| Switching voltage | high: ≥9V low: ≤ 2 V |
| Input resistance | 15,000 Ω |
| Active switching state | High |
| Number of digital switching outputs | 2 Piece(s) |
| Type | Digital switching output |
| Voltage type | DC |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Load capacity | 0.01 µF |
| Switching element | Transistor, Push-pull |
| Switching(Output 1) principle | IO-Link / PNP light switching (switching in the gap), NPN dark switching (switching on the label) |
| Switching(Output 2) principle | active low (normal operation high, event case low) |
| Switching frequency | 2,000 Hz |
| Response time | 0.2 ms |
| Readiness delay | 300 ms |
| Max. Bandgeschwindigkeit beim Teach-In | 50 m/min |
| Type | IO-Link |
| COM mode | COM3 |
| Profile | Smart sensor profile |
| Min. cycle time | COM3 = 0.5 ms |
| Frame type | 2.5 |
| Specification | V1.1 |
| Device ID | 2510 |
| SIO-mode support | Yes |
| Number of connections | 1 Piece(s) |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Plug outlet | Vertical (perpendicular to belt movement) |
| Design | Fork |
| Mouth width | 4 mm |
| Mouth depth | 80 mm |
| Dimension (W x H x L) | 22 mm x 46.9 mm x 96 mm |
| Housing material | Metal |
| Metal housing | Diecast zinc, galvanic nickel coating |
| Net weight | 270 g |
| Housing color | Silver |
| Type of fastening | Mounting thread Through-hole mounting |
| Type of display | LED |
| Number of LEDs | 4 Piece(s) |
| Operational controls | Control buttons |
| The function of the operational control | Dynamic teach on label carrier and label |
| Ambient temperature, operation | 0 … 60 °C |
| Ambient temperature, storage | -40 … 70 °C |
| Degree of protection | IP 65 |
Product Documentation: IGSU14E/LWT.3-M12V
Related Products: IGSU14E/LWT.3-M12V
GS 61/6D-S8V – 50110113
Leuze Gap Sensor, Model No: GS 61/6D-S8V, Part Number: 50110113, Series: Fork type GS 61, Principle of physics: Optical Fork Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Connector type, Thread size: M8, Number of pins: 4-pin.
GS 63B/6.3-S8 – 50128004
Label Gap Sensor, Model No: GS 63B/6.3-S8, Part Number: 50128004, Series: Fork type GS 63, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 10 to 30 VDC, Connection: Connector type, Thread size: M8, Number of pins: 4-pin.
GSX14E/LGT.3-M12 – 50144142
Leuze Label Sensor, Model No: GSX14E/LGT.3-M12, Part Number: 50144142, Series: Fork type GS 14, Principle of physics: Optical Fork Sensor, Label width: 4 mm ultrasonics / 2 mm optical, Label gap: 2 mm, Supply voltage: 18 to 30 VDC, Light source: Infrared LED, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.
GSU14E/16T.3-M12V – 50142878
Leuze Label Gap Sensor, Model No: GSU14E/16T.3-M12V, Part Number: 50142878, Series: Fork type GS 14, Principle of physics: Ultrasonic Fork Sensor, Label width: 4 mm, Label gap: 2 mm, Supply voltage: 18 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.
GSU12/G6X.3-M12 – 50142880
Label Gap Sensor, Model No: GSU12/G6X.3-M12, Part Number: 50142880, Series: Fork type GS 12, Principle of physics: Ultrasonic Sensor, Label width: 4 mm, Label gap: 2 mm, Supply voltage: 12 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.
GS 63B/66.3-S8 – 50143910
Leuze Label Gap Sensor, Model No: GS 63B/66.3-S8, Part Number: 50143910, Series: Fork type GS 63, Principle of physics: Optical Fork Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Connector type, Thread size: M8, Number of pins: 4-pin.

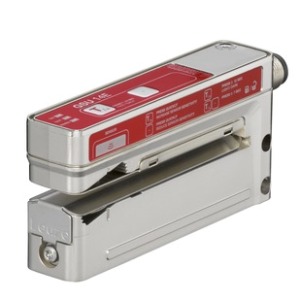

IGSU14E/1WT.3-M12 – 50142872
Label Sensor, Model No: IGSU14E/1WT.3-M12, Part Number: 50142872, Series: Fork type GS 14, Principle of physics: Ultrasonic Fork Sensor, Label width: 4 mm, Label gap: 2 mm, Supply voltage: 18 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.

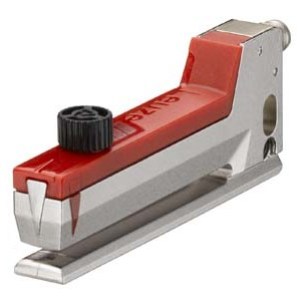

GS 63B/6D,200-S12 – 50128007
Label Gap Sensor, Model No: GS 63B/6D,200-S12, Part Number: 50128007, Series: Fork type GS 63, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 10 to 30 VDC, Connection: Cable with Connector, Cable length: 200 mm, Thread size: M12, Number of pins: 5-pin.
GSU14E/LGT.3-M12 – 50142875
Leuze Label Gap Sensor, Model No: GSU14E/LGT.3-M12, Part Number: 50142875, Series: Fork type GS 14, Principle of physics: Ultrasonic Fork Sensor, Label width: 4 mm, Label gap: 2 mm, Supply voltage: 18 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.
GS 61/6 – 50110769
Leuze Label Gap Sensor, Model No: GS 61/6, Part Number: 50110769, Series: Fork type GS 61, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Cable type, Cable length: 2000 mm, Number of conductors: 5 -wire.
The Leuze IGSU14E/LWT.3-M12V is an ultrasonic forked sensor that belongs to the GS 14 series and has a part number 50142871. This sensor is designed to detection of transparent and detection of non-transparent labels with a minimum label width of 4 mm and a label gap of 2 mm. It features an ALC function for tracking, a manual fine-tuning of the switching threshold, a teach input, and an easyTeach function.
The supply voltage range required by the sensor is 18 to 30 V DC, and it utilizes a connector M12. The Leuze ultrasonic fork sensor IGSU14E-LWT.3-M12V has one teach input and two digital switching outputs with a maximum switching current of 100 mA. The switching(Output 1) principle is IO-Link / PNP light switching (switching in the gap), NPN dark switching (switching on the label), while the switching(Output 2) principle is active low (normal operation high, event case low). The Leuze GSU14E/LGT.3-M12V sensor has a response time of 0.2 ms and a readiness delay of 300 ms.
The Leuze Ultrasonic forked sensor IGSU14E LWT 3 M12V has a mouth width of 4 mm and a mouth depth of 80 mm, and its dimensions are 22 mm x 46.9 mm x 96 mm. The sensor is made of diecast zinc with a galvanic nickel coating, and it has a net weight of 270 g. It has a degree of protection IP 65 and is operational within the ambient temperature range of 0 to 60 °C.
The Leuze IGSU14E/LWT.3-M12V sensor can be fastened through a mounting thread or through-hole mounting, and it features four LED lights and control buttons for dynamic teach on label carrier and label. If you are bothered about the GS 14 series prices, you can be sure to get the best rates at IndMALL Automation. Procure Leuze IGSU14E-LWT.3-M12V Sensor Now and available the best offers on your purchase.
