Leuze Ultrasonic Fork Sensor
GSU14E/LGT.3-M12V
Brand Leuze Electronics
Model Number GSU14E/LGT.3-M12V
Part Number 50142876
Sensor type Ultrasonic Fork Sensor
Leuze GSU14E/LGT.3-M12V Ultrasonic Fork Sensor Technical Features
The Leuze GSU14E/LGT.3-M12V is an ultrasonic fork sensor with part number 50142876. It belongs to the GS 14 series and has a label identification fork type. The label width is 4 mm and the label gap of 2 mm. It uses a connector M12 and requires a supply voltage of 18 to 30 VDC.
| Part Number | 50142876 |
| Series | 14 |
| Principle of Physics | ultrasonics |
| Application | Detection of non-transparent labels Detection of transparent labels |
| Label width, min. | 4 mm |
| Label gap, min. | 2 mm |
| Medium | Transparent and not transparent |
| Special version | Manual fine-tuning of the switching threshold Teach input |
| Supply voltage UB | 18 … 30 V DC |
| Open-circuit current | 0 … 60 mA, Typical value |
| Number of teach inputs | 1 Piece(s) |
| Type | Teach input |
| Voltage type | DC |
| Switching voltage | high: ≥9V low: ≤ 2 V |
| Input resistance | 15,000 Ω |
| Active switching state | High |
| Number of digital switching outputs | 2 Piece(s) |
| Type | Digital switching output |
| Voltage type | DC |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Load Capacity | 0.01 µF |
| Switching element | Transistor, Push-pull |
| Switching(Output 1) principle | IO-Link / PNP light switching (switching in the gap), NPN dark switching (switching on the label) |
| Switching(Output 2) principle | NPN light switching (switching in the gap), PNP dark switching (switching on the label) |
| Switching frequency | 2,000 Hz |
| Response time | 0.2 ms |
| Readiness delay | 300 ms |
| Max. Bandgeschwindigkeit beim Teach-In | 50 m/min |
| Type | IO-Link |
| COM mode | COM3 |
| Profile | Smart sensor profile |
| Min. cycle time | COM3 = 0.5 ms |
| Frame type | 2.5 |
| Specification | V1.1 |
| Device ID | 2520 |
| SIO-mode support | Yes |
| Number of connections | 1 Piece(s) |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Plug outlet | Vertical (perpendicular to belt movement) |
| Design | Fork |
| Mouth width | 4 mm |
| Mouth depth | 80 mm |
| Dimension (W x H x L) | 22 mm x 46.9 mm x 96 mm |
| Housing material | Metal |
| Metal housing | Diecast zinc, galvanic nickel coating |
| Net weight | 270 g |
| Housing color | Silver |
| Type of fastening | Mounting thread Through-hole mounting |
| Type of display | LED |
| Number of LEDs | 3 Piece(s) |
| Operational controls | Control buttons |
| The function of the operational control | Dynamic teach on label carrier and label |
| Degree of protection | IP 65 |
| Ambient temperature, operation | 0 … 60 °C |
| Ambient temperature, storage | -40 … 70 °C |
Product Documentation: GSU14E/LGT.3-M12V
Related Products: GSU14E/LGT.3-M12V
GS 61/6 – 50110769
Leuze Label Gap Sensor, Model No: GS 61/6, Part Number: 50110769, Series: Fork type GS 61, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Cable type, Cable length: 2000 mm, Number of conductors: 5 -wire.
GS 61/6-S8 – 50110110
Label Gap Sensor, Model No: GS 61/6-S8, Part Number: 50110110, Series: Fork type GS 61, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Connector type, Thread size: M8, Number of pins: 4-pin.

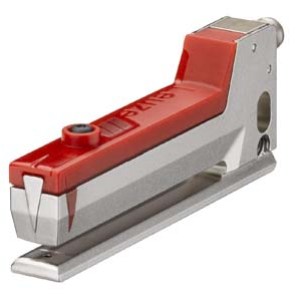

GS 63B/6.3-S8V – 50128005
Label Gap Sensor, Model No: GS 63B/6.3-S8V, Part Number: 50128005, Series: Fork type GS 63, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 10 to 30 VDC, Connection: Connector type, Thread size: M8, Number of pins: 4-pin.
GSU14E/LGT.3-M12V – 50142876
Leuze Label Sensor, Model No: GSU14E/LGT.3-M12V, Part Number: 50142876, Series: Fork type GS 14, Principle of physics: Ultrasonic Fork Sensor, Label width: 4 mm, Label gap: 2 mm, Supply voltage: 18 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.

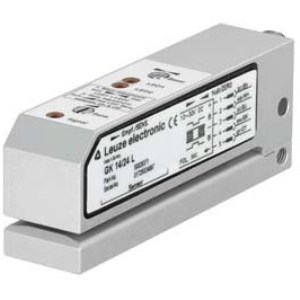

GK 14/24 L – 50026371
Label Gap Sensor, Model No: GK 14/24 L, Part Number: 50026371, Series: Fork type GK 14, Principle of physics: Capacitive Fork Sensor, Label width: 10 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.
GSX14E/1WT.3-M12V – 50142868
Label Gap Sensor, Model No: GSX14E/1WT.3-M12V, Part Number: 50142868, Series: Fork type GS 14, Principle of physics: Optical and Ultrasonic Sensor, Label width: 4 mm Ultrasonics / 2 mm Optical, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 18 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.

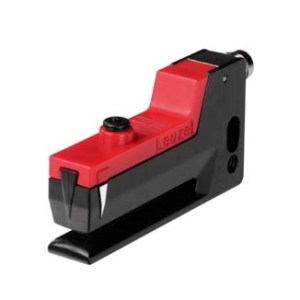

GS 61/6.2 – 50110767
Leuze Label Gap Sensor, Model No: GS 61/6.2, Part Number: 50110767, Series: Fork type GS 61, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Cable type, Cable length: 2000 mm, Number of conductors: 5 -wire.
GS 61/6D.2,200-S12 – 50112426
Label Gap Sensor, Model No: GS 61/6D.2,200-S12, Part Number: 50112426, Series: Fork type GS 61, Principle of physics: Optical Fork Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Cable with Connector, Cable length: 200 mm, Thread size: M12, Number of pins: 5-pin.

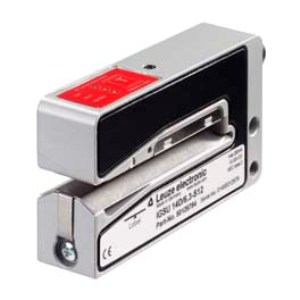

IGSU 14DN/6.3-S12 – 50126788
Label Gap Sensor, Model No: IGSU 14DN/6.3-S12, Part Number: 50126788, Series: Fork type GS 14, Principle of physics: Ultrasonic Sensor, Label width: 10 mm, Label gap: 2 mm, Supply voltage: 12 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.
GS 63B/6.3,200-S8 – 50129248
Label Gap Sensor, Model No: GS 63B/6.3,200-S8, Part Number: 50129248, Series: Fork type GS 63, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 10 to 30 VDC, Connection: Cable with Connector, Cable length: 200 mm, Thread size: M8, Number of pins: 4-pin.
The Leuze GSU14E/LGT.3-M12V Ultrasonic Fork Sensor, part number 50142876, is designed based on the principle of ultrasonics physics for the detection of non-transparent labels and the detection of transparent labels. The sensor can detect labels with a minimum width of 4 mm and a label gap of 2 mm. It operates with a supply voltage of 18-30V DC and has an open-circuit current of 0-60mA.
The device features teach input a manual fine-tuning of the switching threshold and one teach input. The teach input is a DC voltage and has an input resistance of 15,000 Ω. The sensor also has two digital switching outputs that operate with a maximum switching current of 100mA. A switching element can refer to a device or component that is used to turn a circuit on or off. Two common types of switching elements are transistor push-pull circuits.
The switching principle for Output 1 is IO-Link/PNP light switching in the gap or NPN dark switching on the label. For Output 2, it is NPN light switching in the gap or PNP dark switching on the label. The Ultrasonic Forked Sensor GSU14E/LGT.3-M12V has a switching frequency of 2,000 Hz, a response time of 0.2 ms, and a readiness delay of 300 ms.
Leuze Ultrasonic Fork Sensor GSU14E/LGT.3-M12V has a maximum belt speed of 50m/min during Teach-In and uses a male, 5-pin A-coded connector M12 for connection. A plug outlet is a type of electrical receptacle that provides a point of connection for electrical devices. The term “vertical” is a relative term, so it is unclear what is being referred to as perpendicular to belt movement. The device is designed as a fork with a 4mm mouth width and 80mm mouth depth. Leuze GSU14E/LGT.3-M12V Sensor has a housing material made of diecast zinc with a galvanic nickel coating, and its dimensions are 22mm x 46.9mm x 96mm.
The sensor is equipped with three LEDs for display and control buttons for operational control. Its operational control function is dynamic teach label carrier and label. The Leuze GSU14E/LGT.3-M12 Ultrasonic Forked Sensor is compatible with the Smart Sensor Profile and supports SIO mode. It has a net weight of 270g and a silver housing color. The sensor can be mounted using a mounting thread or through-hole mounting.
