Leuze Ultrasonic Fork Sensor
GSX14E/1WT.3-M12V
Brand Leuze Electronics
Model Number GSX14E/1WT.3-M12V
Part Number 50142868
Sensor type Ultrasonic Fork Sensor
Leuze GSX14E/1WT.3-M12V Forked Sensor Technical Features:
The Leuze GSX14E 1WT 3 M12V model is an ultrasonic and optical forked sensor belonging to the GS 14 series, with a part number 50142868. It is designed with a fork-type label identification system that features a label width of 4 mm for ultrasonics and 2 mm for optical, and a label gap of 2 mm. This sensor uses a Connector M12 and requires a supply voltage within the range of 18 to 30 V DC.
| Part Number | 50142868 |
| Series | 14 |
| Principle of Physics | optical and ultrasonics |
| Application | Detection of non-transparent labels Detection of transparent labels |
| Label width, min. | 4 mm ultrasonics / 2 mm optical |
| Label gap, min. | 2 mm |
| Medium | Transparent and not transparent |
| Special version | ALC function (tracking) Manual fine-tuning of the switching threshold Teach input Warning output easyTeach function |
| Light source | LED LED, Infrared |
| Wavelength | 850 nm |
| Transmitted-signal shape | Pulsed |
| LED Group | Exempt group (in acc. with EN 62471) |
| Supply voltage UB | 18 … 30 V DC |
| Open-circuit current | 0 … 80 mA, Typical value |
| Number of teach inputs | 1 Piece(s) |
| Type | Teach input |
| Voltage type | DC |
| Switching voltage | high: ≥9V low: ≤ 2 V |
| Input resistance | 15,000 Ω |
| Active switching state | High |
| Number of digital switching outputs | 2 Piece(s) |
| Type | Digital switching output |
| Voltage type | DC |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Load capacity | 0.01 µF |
| Switching element | Transistor, Push-pull |
| Switching(Output 1) principle | IO-Link / NPN light switching (switching in the gap), PNP dark switching (switching on the label) |
| Switching(Output 2) principle | active low (normal operation high, event case low) |
| Switching frequency | 2,000 Hz, ultrasonics / 9061 Hz optical |
| Response time | 0.2 ms, ultrasonics / 0.05 ms optical |
| Readiness delay | 300 ms |
| Max. Bandgeschwindigkeit beim Teach-In | 50 m/min |
| Type | IO-Link |
| COM mode | COM3 |
| Profile | Smart sensor profile |
| Min. cycle time | COM3 = 0.5 ms |
| Frame type | 2.5 |
| Specification | V1.1 |
| Device ID | 2501 |
| SIO-mode support | Yes |
| Number of connections | 1 Piece(s) |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Plug outlet | Vertical (perpendicular to belt movement) |
| Design | Fork |
| Mouth width | 4 mm |
| Mouth depth | 80 mm |
| Dimension (W x H x L) | 22 mm x 46.9 mm x 96 mm |
| Housing material | Metal |
| Metal housing | Diecast zinc, galvanic nickel coating |
| Net weight | 270 g |
| Housing color | Silver |
| Type of fastening | Mounting thread Through-hole mounting |
| Type of display | LED |
| Number of LEDs | 6 Piece(s) |
| Operational controls | Control buttons |
| The function of the operational control | Dynamic teach on label carrier and label |
| Ambient temperature, operation | 0 … 60 °C |
| Ambient temperature, storage | -40 … 70 °C |
| Degree of protection | IP 65 |
Product Documentation: GSX14E/1WT.3-M12V
Related Products: GSX14E/1WT.3-M12V
GS 63B/6D.3-S8V – 50128009
Label Gap Sensor, Model No: GS 63B/6D.3-S8V, Part Number: 50128009, Series: Fork type GS 63, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 10 to 30 VDC, Connection: Connector type, Thread size: M8, Number of pins: 4-pin.
GSU14E/16T.3-M12 – 50142877
Label Gap Sensor, Model No: GSU14E/16T.3-M12, Part Number: 50142877, Series: Fork type GS 14, Principle of physics: Ultrasonic Fork Sensor, Label width: 4 mm, Label gap: 2 mm, Supply voltage: 18 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.

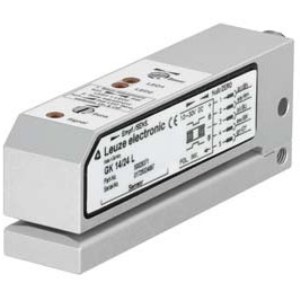

GK 14/24 L.2 – 50031714
Leuze Label Gap Sensor, Model No: GK 14/24 L.2, Part Number: 50031714, Series: Fork type GK 14, Principle of physics: Capacitive Fork Sensor, Label width: 10 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.
GS 61/6D.2-S8 – 50110109
Leuze Label Gap Sensor, Model No: GS 61/6D.2-S8, Part Number: 50110109, Series: Fork type GS 61, Principle of physics: Optical Fork Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Connector type, Thread size: M8, Number of pins: 4-pin.
GS 61/6D.2425-S12 – 50145357
Leuze Label Gap Sensor, Model No: GS 61/6D.2425-S12, Part Number: 50145357, Series: Fork type GS 61, Principle of physics: Optical Fork Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Cable with Connector, Cable length:425 mm, Thread size: M12, Number of pins: 5-pin.

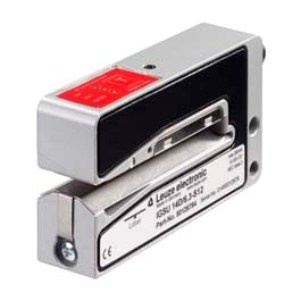

IGSU 14D/6.31-S12 – 50126786
Label Gap Sensor, Model No: IGSU 14D/6.31-S12, Part Number: 50126786, Series: Fork type GS 14, Principle of physics: Ultrasonic Sensor, Label width: 10 mm, Label gap: 2 mm, Supply voltage: 12 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.
GS 63B/6.3-S8V – 50128005
Label Gap Sensor, Model No: GS 63B/6.3-S8V, Part Number: 50128005, Series: Fork type GS 63, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 10 to 30 VDC, Connection: Connector type, Thread size: M8, Number of pins: 4-pin.

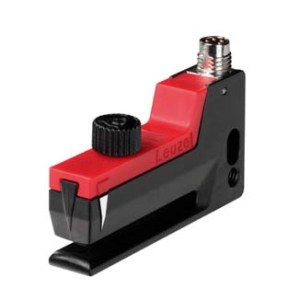

GS 61/6.2-S8V – 50110763
Label Gap Sensor, Model No: GS 61/6.2-S8V, Part Number: 50110763, Series: Fork type GS 61, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Connector type, Thread size: M8, Number of pins: 4-pin.

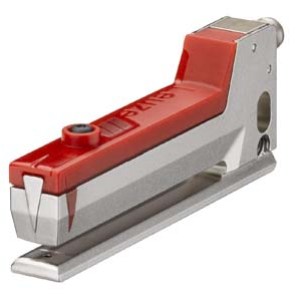

IGS 63B/6D.3,200-S12 – 50128015
Label Gap Sensor, Model No: IGS 63B-6D.3,200-S12, Part Number: 50128015, Series: Fork type IGS 63, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 10 to 30 VDC, Connection: Cable with Connector, Cable length: 200 mm, Thread size: M12, Number of pins: 5-pin.

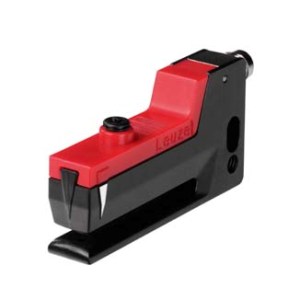

GS 61/6-S8.3 – 50110761
Label Gap Sensor, Model No: GS 61/6-S8.3, Part Number: 50110761, Series: Fork type GS 61, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Connector type, Thread size: M8, Number of pins: 3-pin.
IndMALL is offering the Leuze GSX14E/1WT.3-M12V model, which is a forked sensor belonging to the GS 14 series and is designed for the detection of transparent and detection of non-transparent labels. It utilizes both ultrasonic and optical principles of physics and has a fork-type label identification system with a label width of 4 mm for ultrasonics and 2 mm for optical, and a label gap of 2 mm.
The Leuze ultrasonic Sensor GSX14E 1WT 3 M12V has a light source that uses LED and infrared technology with a wavelength of 850 nm and a pulsed transmitted-signal shape. Additionally, it has an ALC function for tracking, manual fine-tuning of the switching threshold, a teach input, a warning output, and an easyTeach function.
The Leuze GSX14E 1WT 3 M12V Ultrasonic Forked Sensor is equipped with two digital switching outputs with a maximum switching current of 100 mA, a switching voltage of high: ≥(UB-2V), and low: ≤ 2 V, and a load capacity of 0.01 µF. It has an IO-Link and supports SIO mode with a switching frequency of 2,000 Hz and a response time of 0.2 ms. The sensor has a readout delay of 300 ms, and its maximum belt speed during teach-in is 50 m/min. The device has a smart sensor profile and a device ID of 2501.
The Leuze IGSU14E/1WT.3-M12 sensor has a housing material made of die-cast zinc and galvanic nickel coating with silver color and is designed for mounting thread and through-hole mounting. It has a connector M12 with a 5-pin A-coded male-type M12 thread size, and the plug outlet is vertical (perpendicular to belt movement).
The sensor has a fork design with a mouth width of 4 mm and a mouth depth of 80 mm, and its dimensions are 22 mm x 46.9 mm x 96 mm. It has six LED lights and control buttons for operational control. The Leuze GSX14E-1WT.3-M12V sensor has an operating temperature range of 0 … 60 °C, a storage temperature range of -40 … 70 °C, and a degree of protection of IP 65.
