Leuze Ultrasonic Fork Sensor
IGSU14E/1WT.3-M12
Brand Leuze Electronics
Model Number IGSU14E/1WT.3-M12
Part Number 50142872
Sensor type Ultrasonic Fork Sensor
Leuze IGSU14E/1WT.3-M12 Ultrasonic Forked Sensor Technical Features
The GS 14 series ultrasonic fork sensor, part number 50142872, is the Leuze IGSU14E/1WT.3-M12 model. It is designed with a fork-type label identification system, featuring a label width of 4 mm and a label gap of 2 mm. This sensor utilizes a connector M12 and requires a supply voltage within the range of 18 to 30 V DC.
| Part Number | 50142872 |
| Series | 14 |
| Principle of Physics | ultrasonics |
| Application | Detection of non-transparent labels Detection of transparent labels |
| Label width, min. | 4 mm |
| Label gap, min. | 2 mm |
| Medium | Transparent and not transparent |
| Special version | ALC function (tracking) Manual fine-tuning of the switching threshold Teach input Warning output easyTeach function |
| Supply voltage UB | 18 … 30 V DC |
| Open-circuit current | 0 … 60 mA, Typical value |
| Number of teach inputs | 1 Piece(s) |
| Type | Teach input |
| Voltage type | DC |
| Switching voltage | high: ≥9V low: ≤ 2 V |
| Input resistance | 15,000 Ω |
| Active switching state | High |
| Number of digital switching outputs | 2 Piece(s) |
| Type | Digital switching output |
| Voltage type | DC |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Load capacity | 0.01 µF |
| Switching element | Transistor, Push-pull |
| Switching(Output 1) principle | IO-Link / NPN light switching (switching in the gap), PNP dark switching (switching on the label) |
| Switching(Output 2) principle | active low (normal operation high, event case low) |
| Switching frequency | 2,000 Hz |
| Response time | 0.2 ms |
| Readiness delay | 300 ms |
| Max. Bandgeschwindigkeit beim Teach-In | 50 m/min |
| Type | IO-Link |
| COM mode | COM3 |
| Profile | Smart sensor profile |
| Min. cycle time | COM3 = 0.5 ms |
| Frame type | 2.5 |
| Specification | V1.1 |
| Device ID | 2511 |
| SIO-mode support | Yes |
| Number of connections | 1 Piece(s) |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Plug outlet | Horizontal (parallel to belt movement) |
| Design | Fork |
| Mouth width | 4 mm |
| Mouth depth | 80 mm |
| Dimension (W x H x L) | 22 mm x 46.9 mm x 96 mm |
| Housing material | Metal |
| Metal housing | Diecast zinc, galvanic nickel coating |
| Net weight | 270 g |
| Housing color | Silver |
| Type of fastening | Mounting thread Through-hole mounting |
| Type of display | LED |
| Number of LEDs | 4 Piece(s) |
| Operational controls | Control buttons |
| The function of the operational control | Dynamic teach on label carrier and label |
| Ambient temperature, operation | 0 … 60 °C |
| Ambient temperature, storage | -40 … 70 °C |
| Degree of protection | IP 65 |
Product Documentation: IGSU14E/1WT.3-M12
Related Products: IGSU14E/1WT.3-M12
GSX14E/LWT.3-M12 – 50142865
Label Gap Sensor, Model No: GSX14E/LWT.3-M12, Part Number: 50142865, Series: Fork type GS 14, Principle of physics: Optical and Ultrasonic Sensor, Label width: 4 mm Ultrasonics / 2 mm Optical, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 18 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.

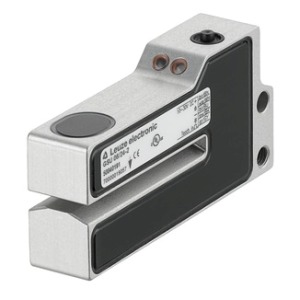

GSU 06/24D-2 – 50040192
Label Gap Sensor, Model No: GSU 06/24D-2, Part Number: 50040192, Series: Fork type GSU 6, Principle of physics: Ultrasonic Fork Sensor, Label width: 10 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Connection: Cable type, Cable length: 2000 mm, Thread size: M12, Number of conductors: 5 -wire.
GSU 14D/66D.31-S12 – 50126783
Label Gap Sensor, Model No: GSU 14D/66D.31-S12, Part Number: 50126783, Series: Fork type GS 14, Principle of physics: Ultrasonic Sensor, Label width: 10 mm, Label gap: 2 mm, Supply voltage: 12 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.
GS 63B/6D.3 – 50146327
Leuze Label Gap Sensor, Model No: GS 63B/6D.3, Part Number: 50146327, Series: Fork type GS 63, Principle of physics: Optical Fork Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Cable type, Cable length: 2000 mm, Number of conductors: 5 -wire.
GSU14E/LGT.3-M12V – 50142876
Leuze Label Sensor, Model No: GSU14E/LGT.3-M12V, Part Number: 50142876, Series: Fork type GS 14, Principle of physics: Ultrasonic Fork Sensor, Label width: 4 mm, Label gap: 2 mm, Supply voltage: 18 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.
GS 61/6D – 50110770
Label Gap Sensor, Model No: GS 61/6D, Part Number: 50110770, Series: Fork type GS 61, Principle of physics: Optical Fork Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Cable type, Cable length: 2000 mm, Number of conductors: 5 -wire.
GS 61/6.2-S8.3 – 50110765
Leuze Gap Sensor, Model No: GS 61/6.2-S8.3, Part Number: 50110765, Series: Fork type GS 61, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Connector type, Thread size: M8, Number of pins: 4-pin.
GS 61/6D.2-S8 – 50110109
Leuze Label Gap Sensor, Model No: GS 61/6D.2-S8, Part Number: 50110109, Series: Fork type GS 61, Principle of physics: Optical Fork Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Connector type, Thread size: M8, Number of pins: 4-pin.
GS 63B/6 – 50128001
Label Gap Sensor, Model No: GS 63B/6, Part Number: 50128001, Series: Fork type GS 63, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 10 to 30 VDC, Connection: Cable type, Cable length: 2000 mm, Thread size: M12, Number of conductors: 5-wire.
IGSU 14D/6.3G-S12 – 50127969
Label Gap Sensor, Model No: IGSU 14D/6.3G-S12, Part Number: 50127969, Series: Fork type GS 14, Principle of physics: Ultrasonic Fork Sensor, Label width: 10 mm, Label gap: 2 mm, Supply voltage: 12 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.
The Leuze IGSU14E/1WT.3-M12 ultrasonic fork sensor, part of the GS 14 series with part number 50142872, uses ultrasonics to detection of transparent and detection of non-transparent labels. It has a label width of 4 mm and a label gap of 2 mm. This sensor features an ALC function for tracking, manual fine-tuning of the switching threshold, and an easyTeach function. It requires a supply voltage of 18 to 30 V DC and has a teach input, warning output, and two digital switching outputs.
The switching principles are IO-Link/NPN light switching in the gap and PNP dark switching on the label for output 1, and active low (normal operation high, event case low) for output 2. The Leuze ultrasonic forked sensor IGSU14E/1WT.3-M12V has a switching frequency of 2,000 Hz, a response time of 0.2 ms, and a readiness delay of 300 ms. Its maximum speed during Teach-In is 50 m/min, and it has a male connector M12 with 5 pins, A-coded, and a housing material made of diecast zinc with a galvanic nickel coating.
The Leuze IGSU14E/1WT.3-M12 sensor has a fork-shaped design with a mouth width of 4 mm and depth of 80 mm, and its dimensions are 22 mm x 46.9 mm x 96 mm. It has an LED display with four LEDs and operational controls with dynamic teach on the label carrier and label. The sensor is suitable for operation in environments with temperatures ranging from 0 to 60°C and has an IP65 degree of protection. If you are bothered about the GS 14 series prices, you can be sure to get the best rates at IndMALL Automation. Procure Leuze IGSU14E-1WT.3-M12 Sensor Now and available the best offers on your purchase.
